Pinpoint Test J: Passive Restraint Module Check: Notes

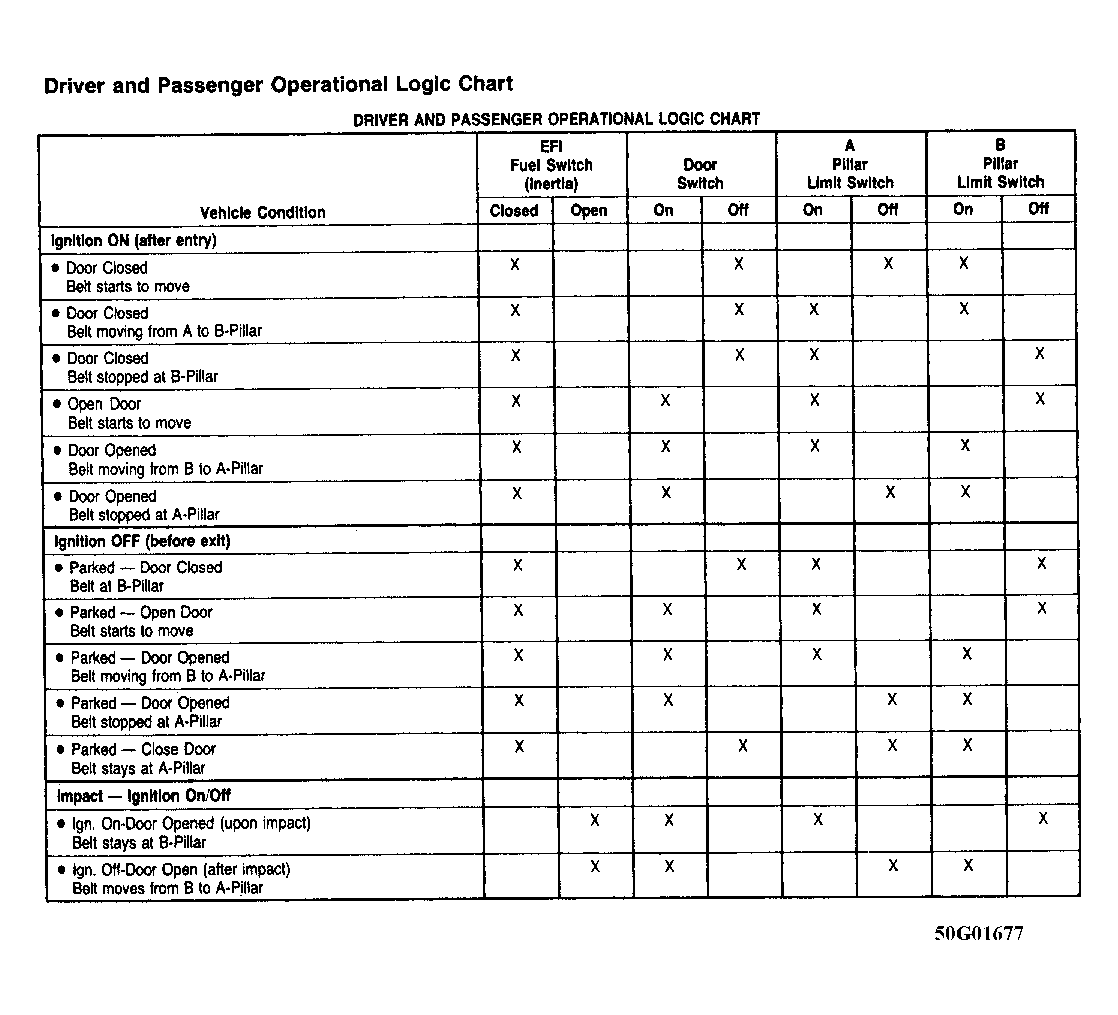

Fig 1: Driver & Passenger Operational Logic Chart

G50G01677

Courtesy of FORD MOTOR CO.
