Wiring Diagrams

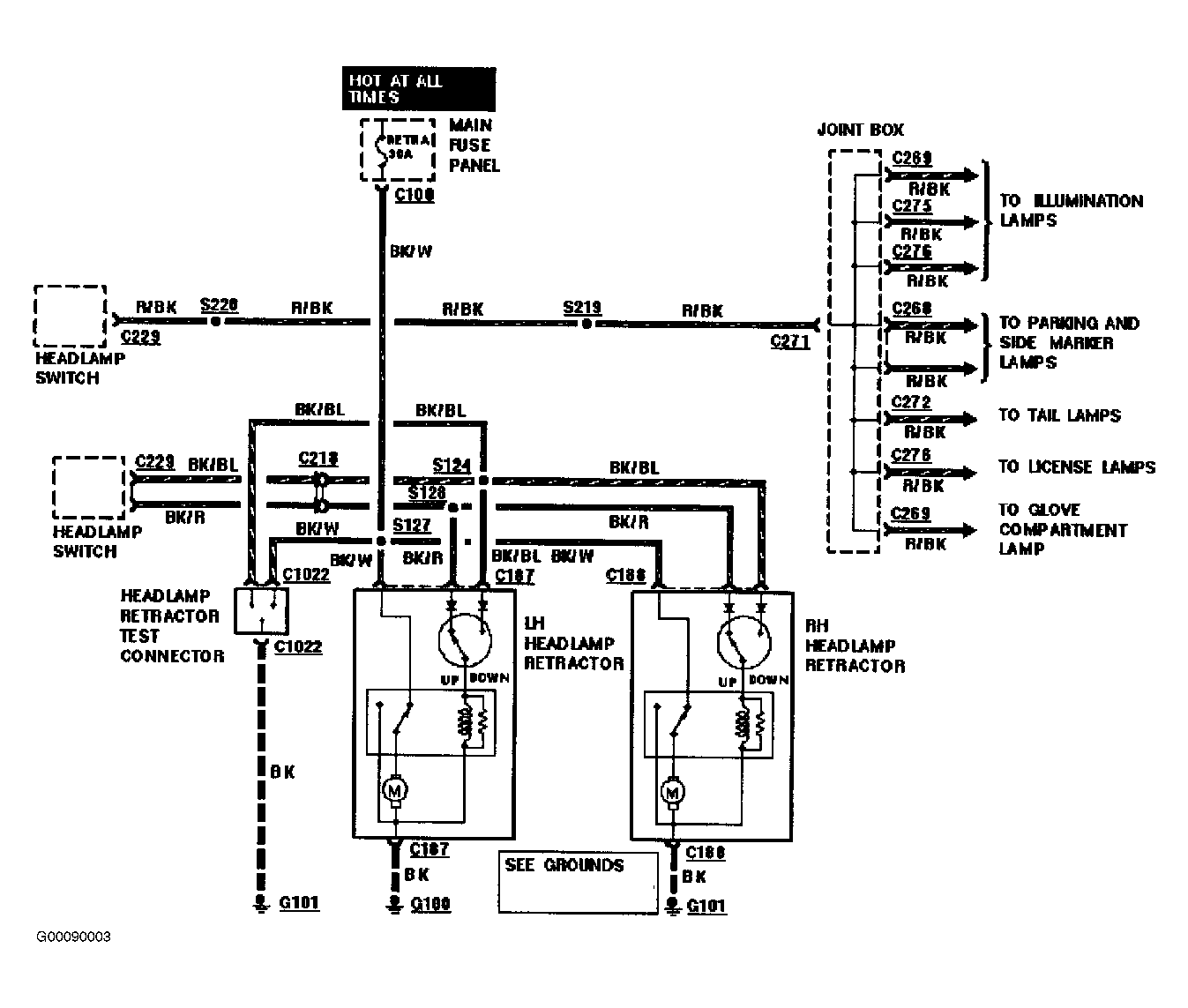

Fig 1: Headlamp Retractor Assembly Wiring Diagram

G00090003

Courtesy of FORD MOTOR CO.
