Fuse Panel Identification (1983-88): Notes

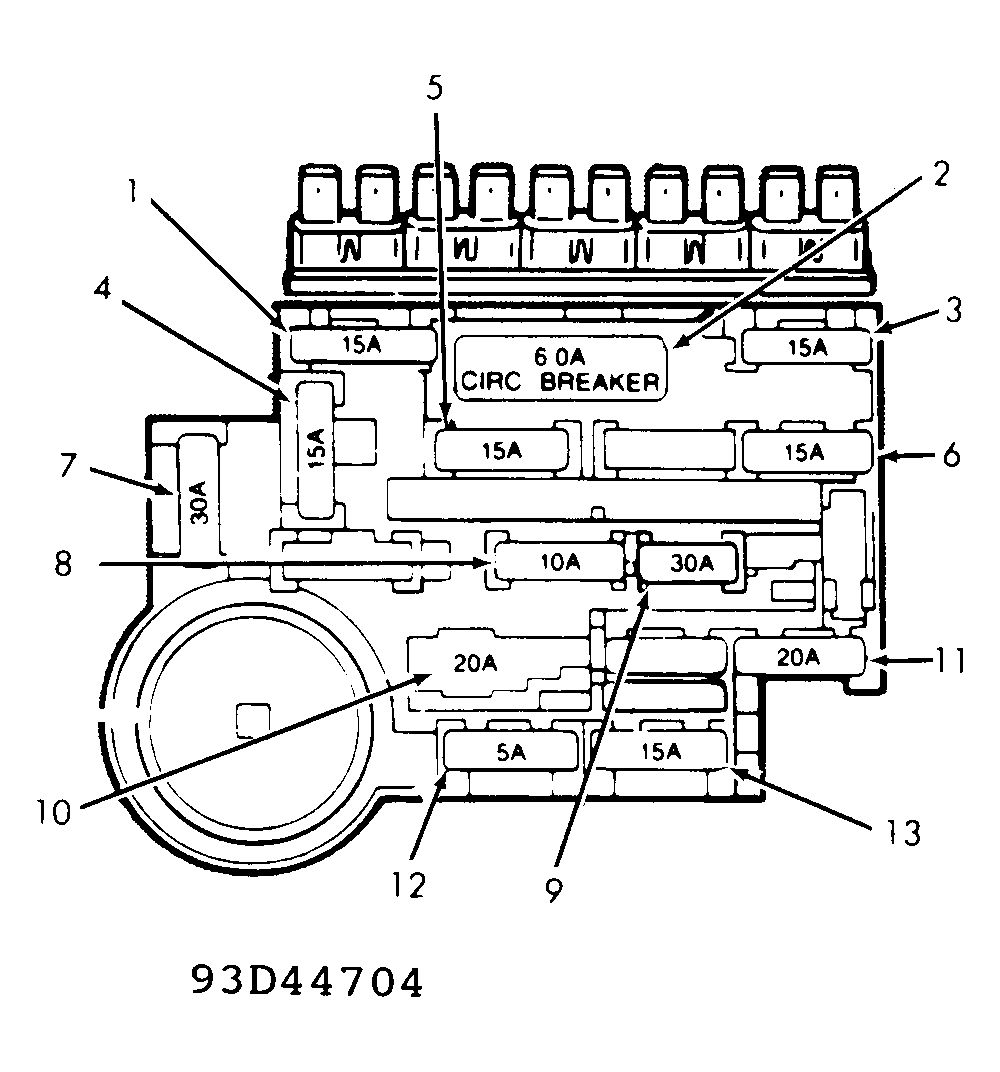

Fig 1: Fuse Panel Identification (1983-88)

G93D44704

Courtesy of FORD MOTOR CO.
