Firing Order & Timing Marks (2.3L)

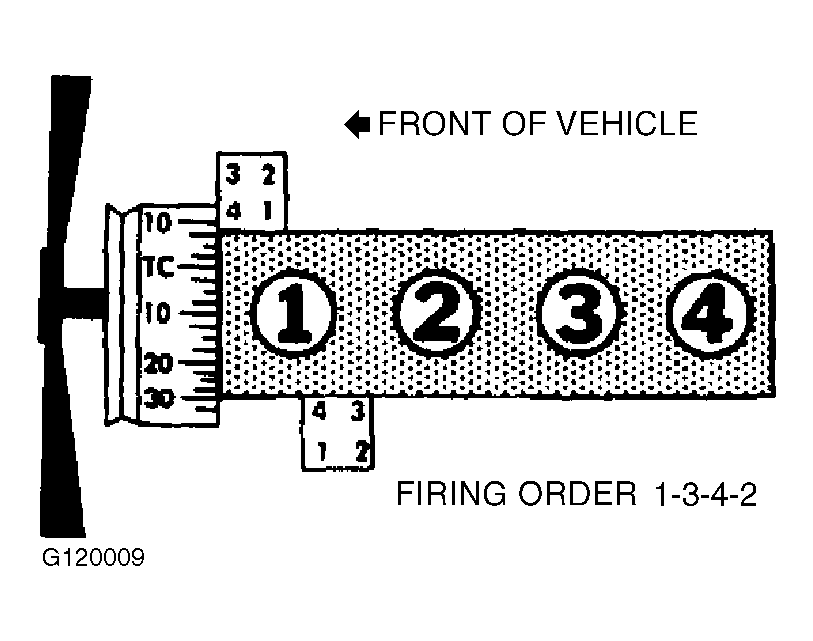

Fig 1: Identifying Firing Order & Timing Marks (2.3L)

G120009

Courtesy of FORD MOTOR CO.
