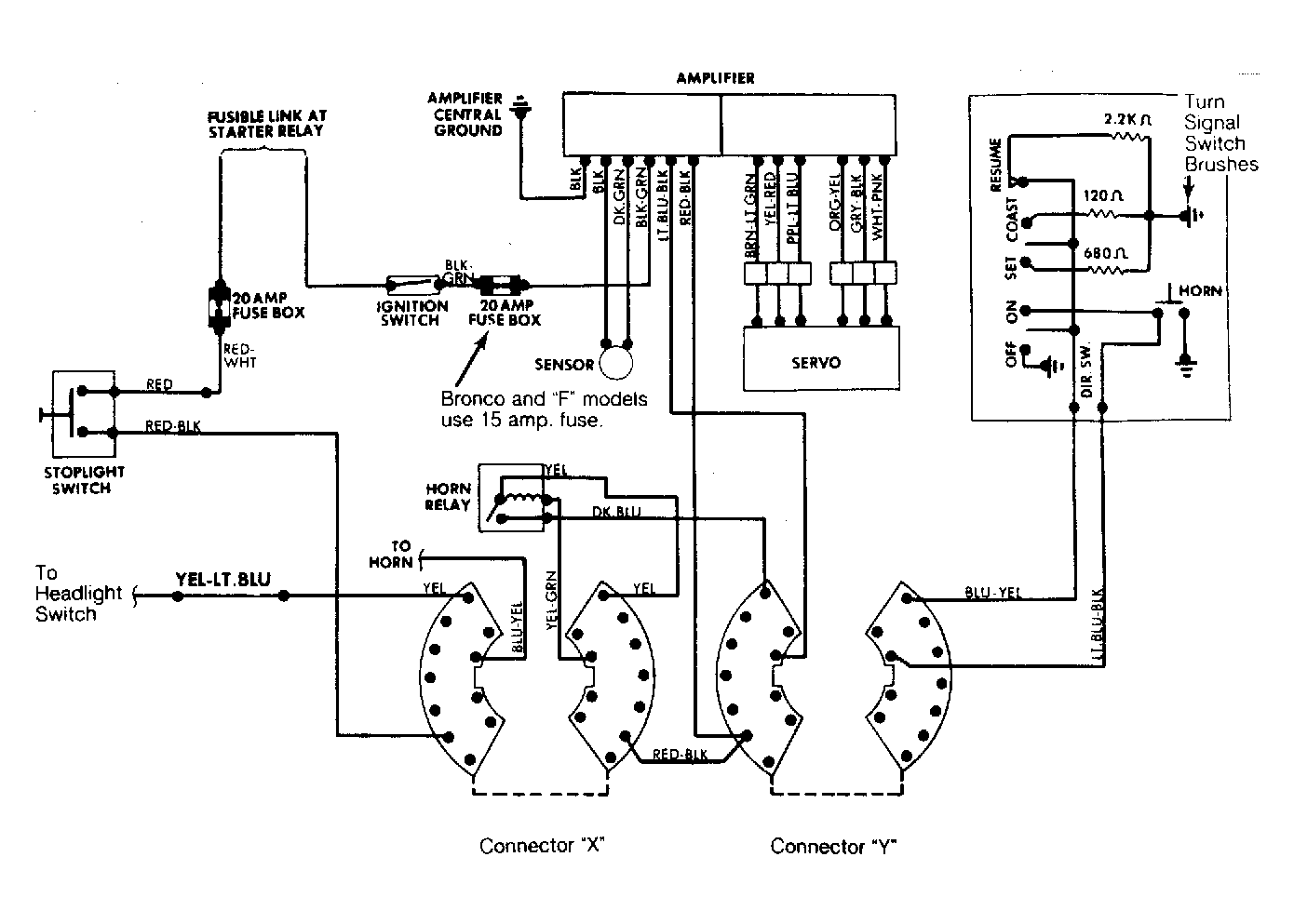

"RESUME" Circuit Test
- With ignition "ON" and voltmeter leads connected to ground and to Light Blue/Black dashed wire at amplifier 6-way connector, depress and hold "RESUME" switch. Voltmeter should indicate approximately 6.5 volts.
- If all functions check good, perform Servo Assembly Test. Insert a known good amplifier, and recheck system if necessary.
