1.6L Hard Cold Start - Choke Spring/Index Spacer (83-2-6)
Publication date: 1983-01-25Reference number: 83-2-6
1.6L HARD COLD START - CHOKE SPRING/INDEX SPACER
TECHNICAL SERVICE BULLETIN
Reference Number(s): 83-2-6
HARD START COLD - 1.6L ENGINE
Model FORD: 1983 ESCORT, EXP
LINCOLN-MERCURY: 1983 LYNX, LN7 Group Engine Performance Bulletin No. 83-2-6 Date January 25, 1983 Symptom Hard Start Calibration All with ATX and Model 740 Carburetor
SERVICE INFORMATION
Cold start can be improved by installing a new choke overcenter
spring and choke index spacer.
SERVICE PROCEDURE

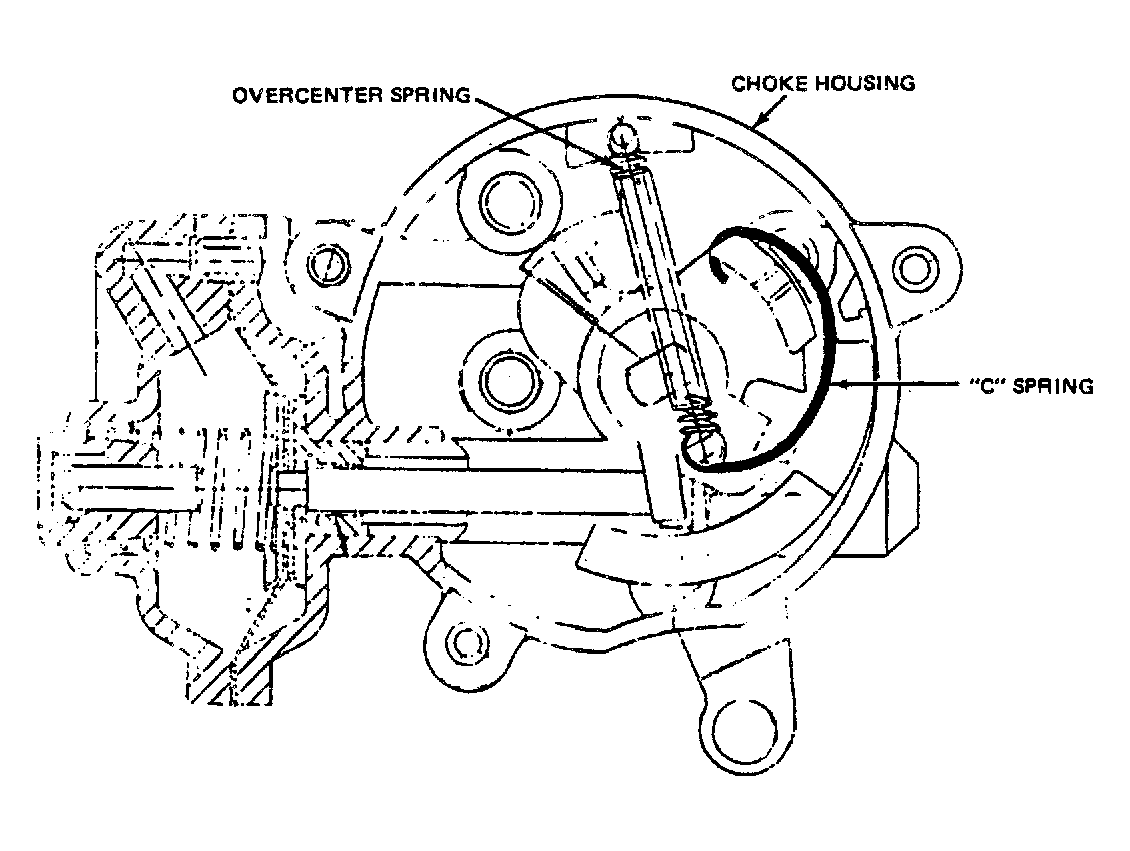

- Remove choke cap.
- Remove original choke index spacer.
- Remove and discard overcenter spring.
- Remove and discard "C" spring.
- Install a new overcenter spring 9587 (Holley 38R-2009).
- Install a new choke index spacer 9A539 (Holley 40R-583-3.
- Install choke cap, retaining ring with two (2) new rivets 9SS10 (Holley 29R-1332).
Obtain an Authorized Modifications decal and list the date, dealer number and summary of alterations performed. Select a prominent place adjacent to the Vehicle Emission Control Information decal suitable for installing the Authorized Modifications decal. Clean the area, install the decal and cover it with a clear plastic decal shield.
PARTS INFORMATION
| PART NUMBER | PART NAME | CLASS |
|---|---|---|
| E1PZ-9587-A | Choke Overcentur Wpsyng p | A |
| ElPZ-9A539-B | Choke Index Spacer | B |
| E1PZ-95510-F | Choke Cap Rivets | A |
