Occupant Restraint Controller Bracket: Removal
WARNING: This page is about a different car, the 2020 Fiat 124 Spider. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the Occupant Restraint Controller (ORC). Refer to MODULE, OCCUPANT RESTRAINT CONTROL (ORC), REMOVAL AND INSTALLATION .

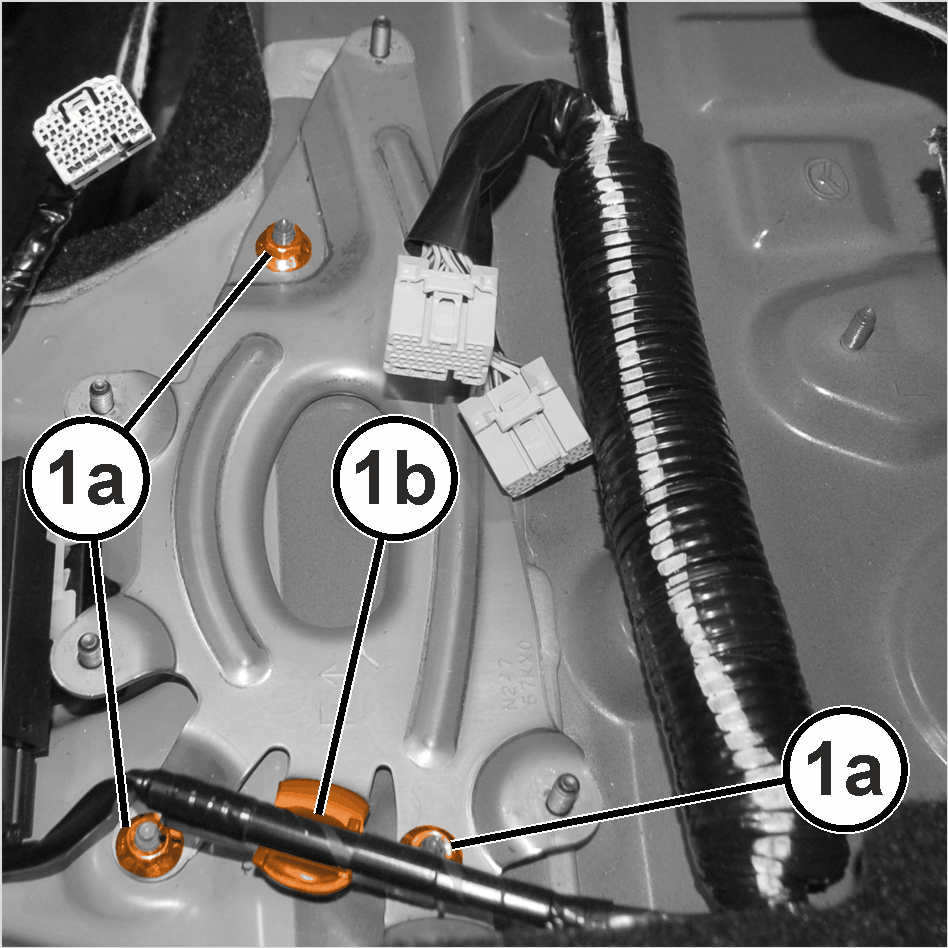

- Remove the bracket nuts (1a) and remove the wire harness retainer (1b).
