Removal And Installation

WARNING: This page is about a different car, the 2020 Fiat 124 Spider. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The procedure explains the detachment/reattachment of the automatic Transmission Control Module (TCM) on vehicle with right-hand drive. For versions with left-hand drive, proceed in the same way.

REMOVAL

  1. Disconnect and isolate the negative battery cable.

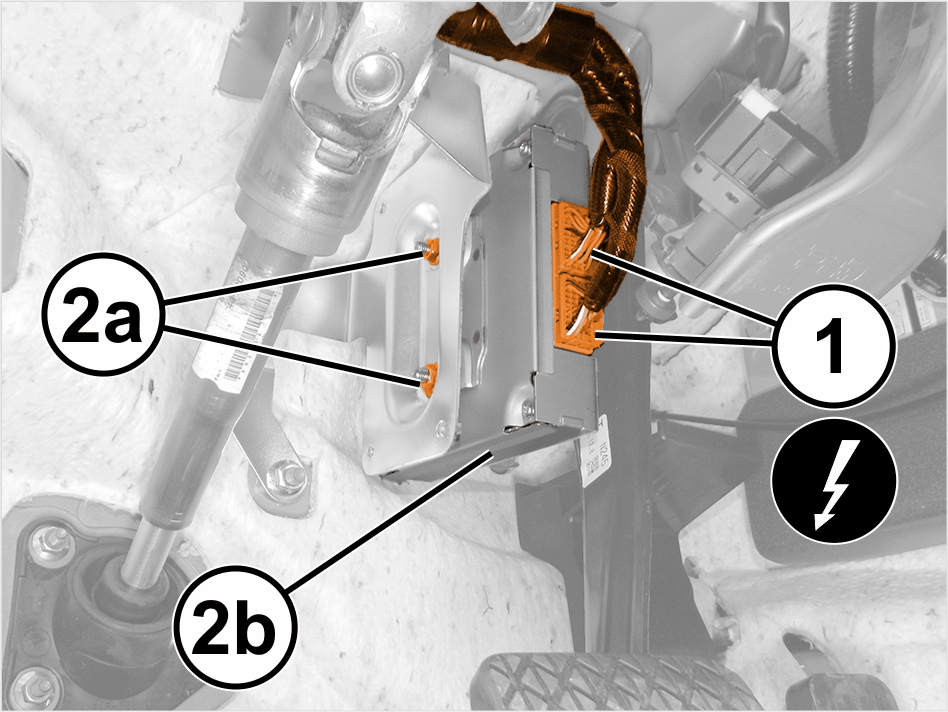

    GC0176336Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wiring harness connector (1) from the TCM.
  3. Remove two nuts (2a).
  4. Remove the TCM (2b).

INSTALLATION

  1. Using nuts, position and secure the TCM.
  2. Connect the wiring harness connector to the TCM.
  3. Connect the negative battery terminal.
