Power Distribution Center
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLATION
- Position the Power Distribution Center (PDC) into the PDC base in the engine compartment.

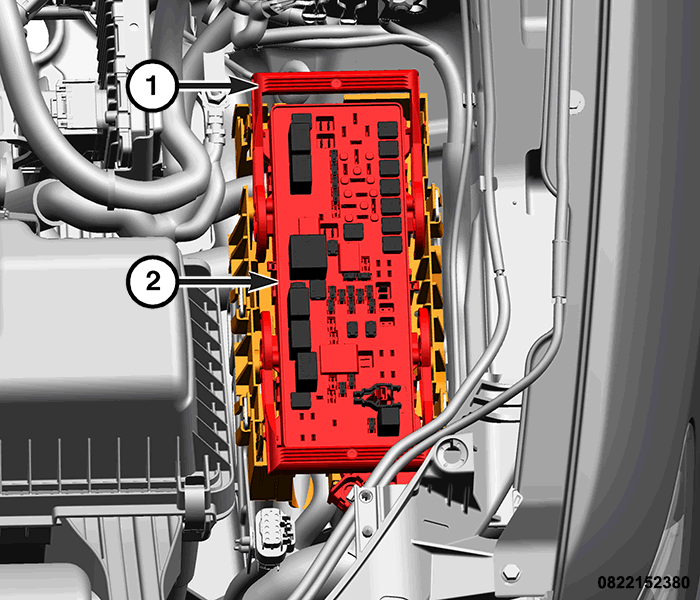

- Connect the bulkhead connectors located in the base of the PDC (2) by pressing doing on the two cam levers (1).

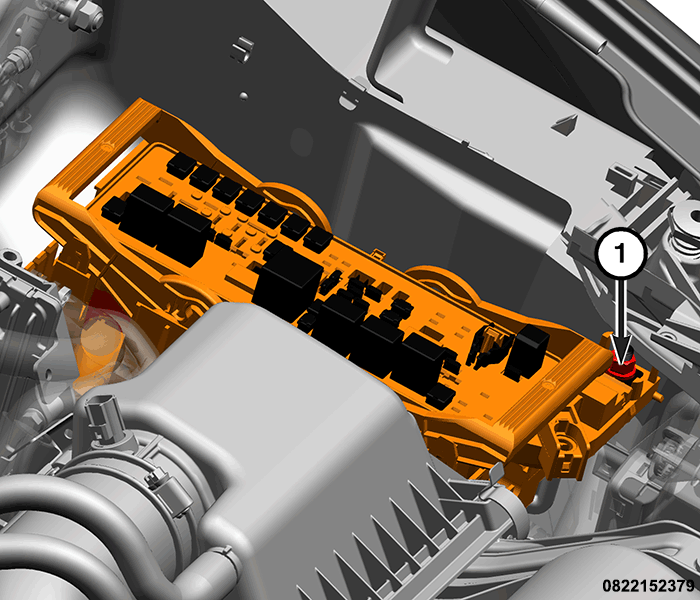

- Connect the positive (+) battery cable and install the fastener (1) to the positive (+) battery cable at PDC and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

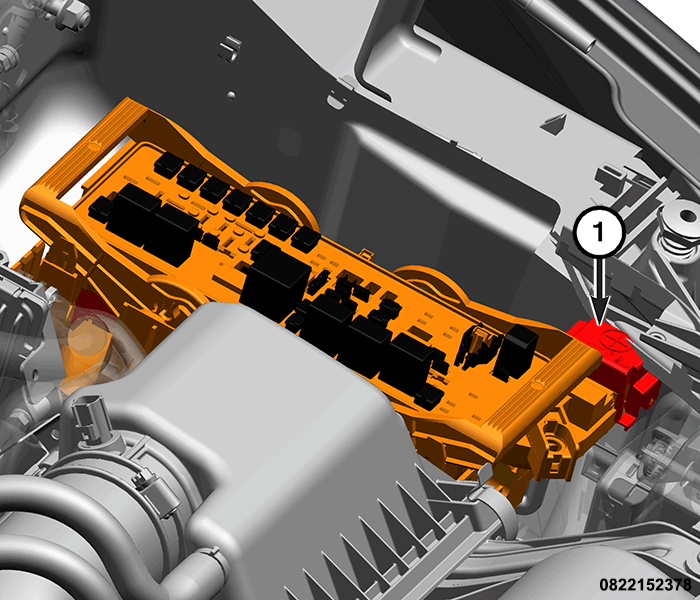

- Install the positive (+) battery cable cover (1).

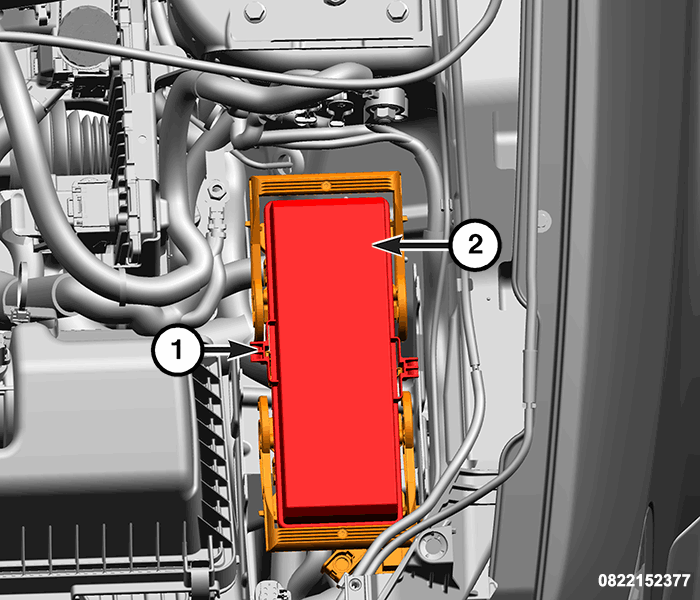

- Install the PDC cover (2) onto the PDC assembly and verify the locking tabs (1) are securely engaged.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
