Removal And Installation: Removal

WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the load compartment side trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

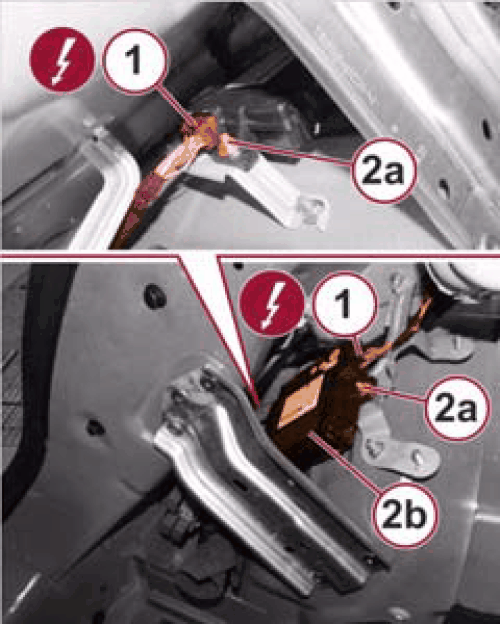

    GC0174240Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wiring harness connections (1) from the Remote Frequency Hub Module (RFHM) (2b).
  3. Remove the bolts (2a) securing the RFHM to the body.
