Switch - Left Side

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the appropriate door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

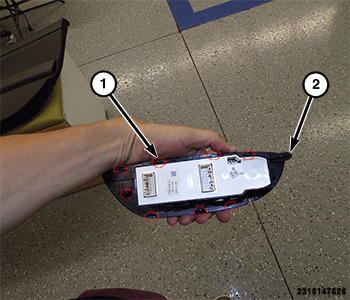

3. Using a trim stick or equivalent release the retaining clips (1) and slide window switch back off retaining arm (2) to remove power window switch.

INSTALLATION

1. Insert the power window switch into the door trim panel support and press firmly until retaining clips are fully installed.
2. Install the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
3. Connect the negative battery cable.
