Valve, Purge Control: Installation

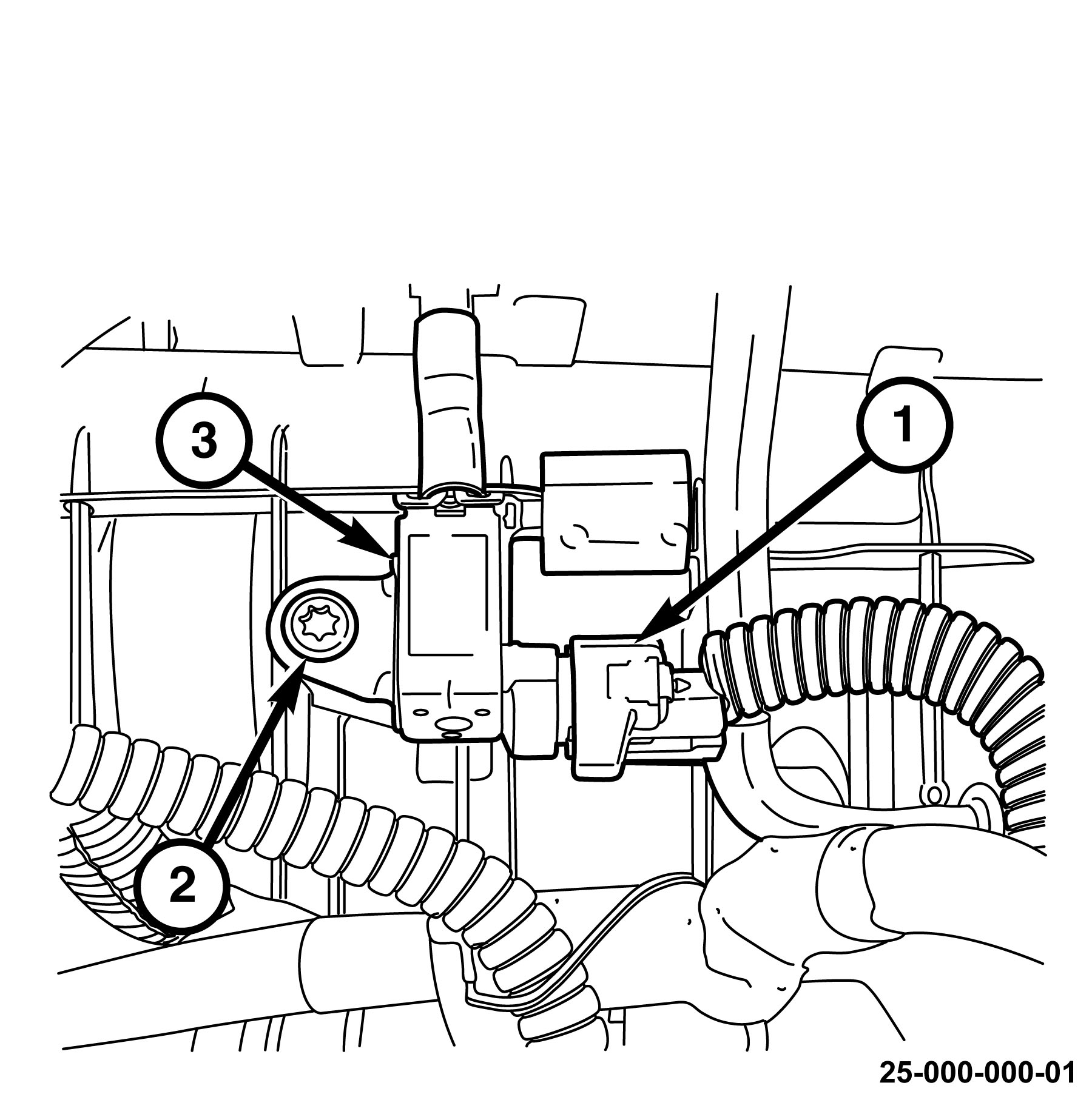

GC0156299Courtesy of CHRYSLER GROUP, LLC
  1. Install the purge control valve (3) and securely tighten the bolt (2).
  2. Connect the vacuum hose to the purge control valve (3).
  3. Connect the purge control valve (3) wire harness connector (1).

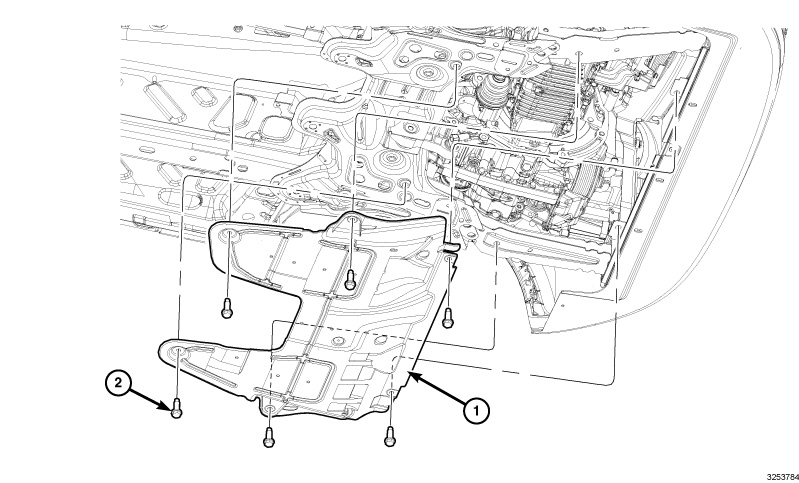

    GC0153109Courtesy of CHRYSLER GROUP, LLC
  4. Install the belly pan (1). Refer to BELLY PAN, INSTALLATION .
  5. Connect the negative battery cable.
