Removal And Installation: Installation

  1. Fill in the torque converter with new transmission fluid.
    NOTE:

    Insert the torque converter taking care not to damage the seal ring on the gear inlet shaft.

  2. Install the torque converter in the transmission.

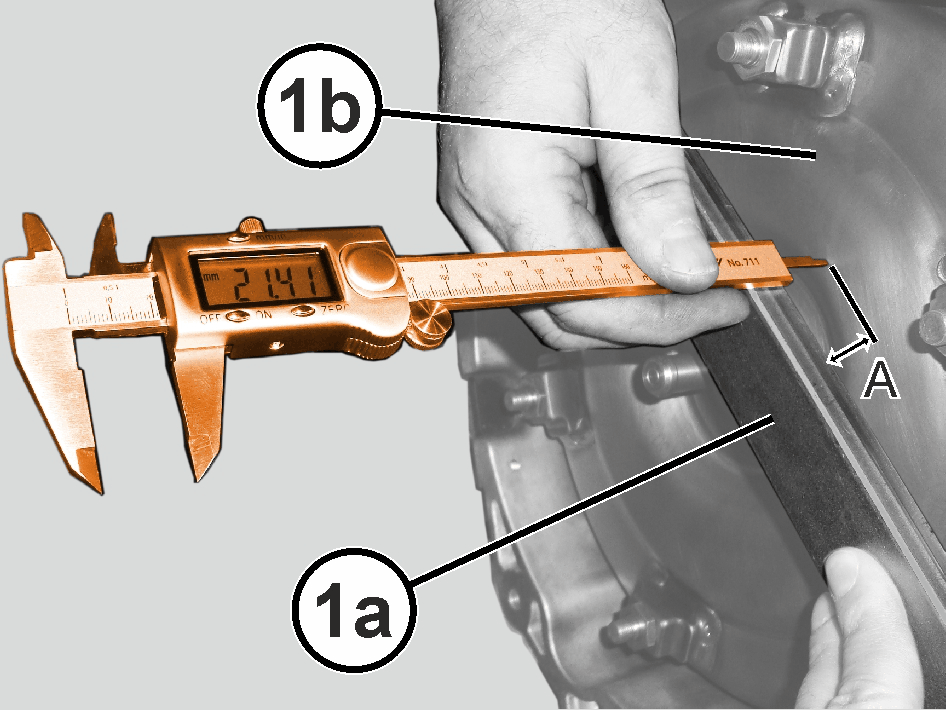

    GC0175412Courtesy of CHRYSLER GROUP, LLC
  3. Using a straight edge (1a) and a depth micrometer measure the distance between the straight edge (1a) and a flat surface of the torque converter (1b) and make sure it is not lower than 21.4mm.
  4. Fill the transmission with fluid Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  5. Install the transmission Refer to REMOVAL AND INSTALLATION .
