Removal And Installation

REMOVAL

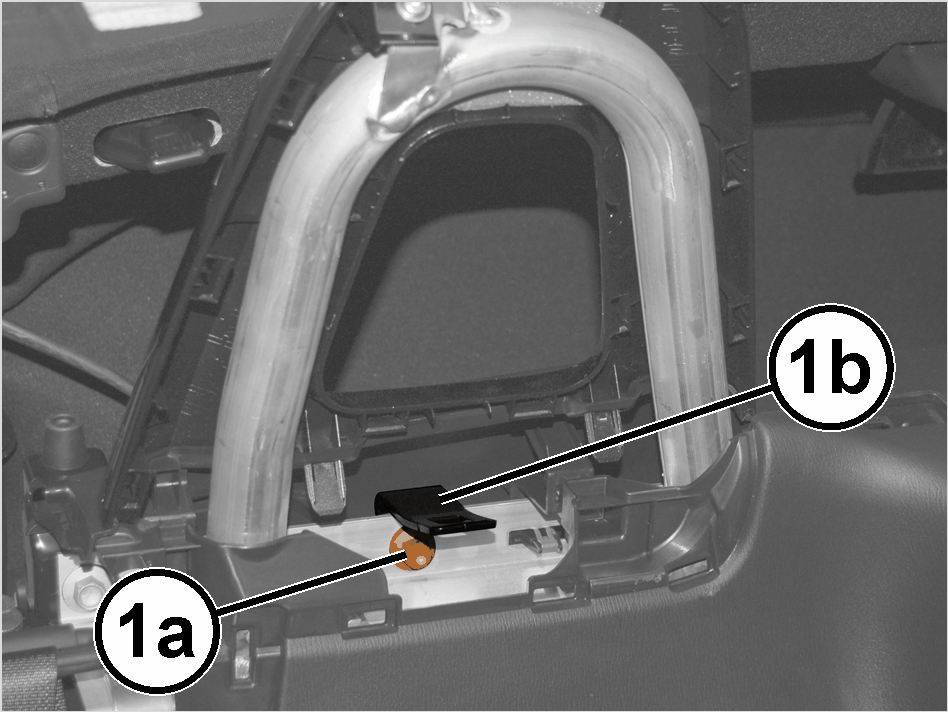

GC0175500Courtesy of CHRYSLER GROUP, LLC
  1. Recline forward the passenger side seat.
  2. Remove the roll bar trim panel. Refer to PANEL, ROLL BAR TRIM, REMOVAL AND INSTALLATION .
  3. Remove the bolt (1a) and remove the isofix attachment (1b).

INSTALLATION

  1. Position the isofix attachment and tighten the bolt securely.
  2. Install the roll bar trim panel. Refer to PANEL, ROLL BAR TRIM, REMOVAL AND INSTALLATION .
