Engine Coolant Temperature Sensor

REMOVAL

1. Remove the thermostat housing. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

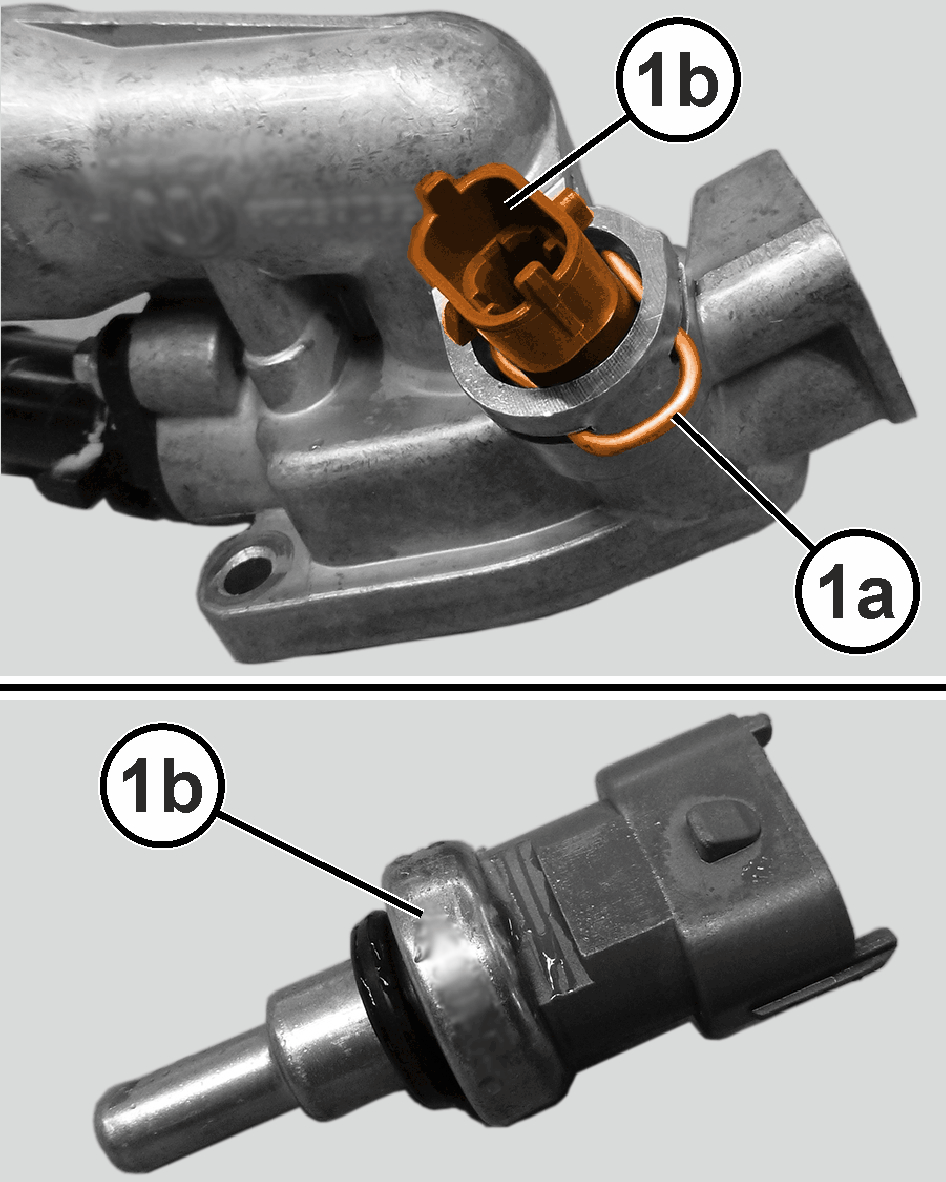

2. Remove the retaining clip (1a) and the engine coolant temperature sensor (1b).

INSTALLATION

1. Install the engine coolant temperature sensor and the retaining clip.
2. Install the thermostat housing. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .
