Module-Powertrain Control C2

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 10810290

Part Description: Not Available

Connector No: D3821B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 60

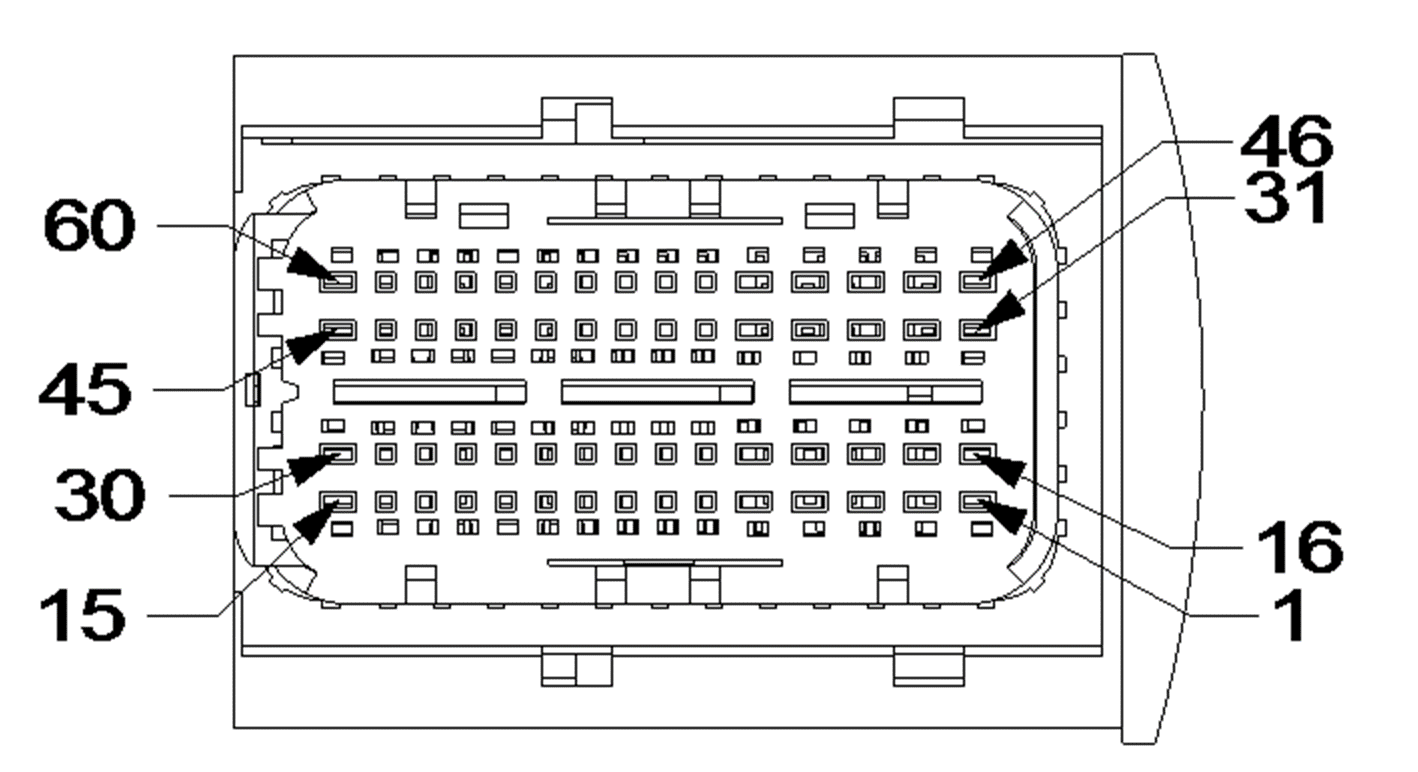

Fig 1: Module-Powertrain Control C2 Connector End View
GCWD1092993Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K18 WT/DB 0.75 COIL CONTROL 3 STANDARD
2 K15 WT/BR 0.75 COIL CONTROL 4 STANDARD
3 K11 DB/BK 0.75 INJECTOR CONTROL 1 STANDARD
4 K12 WT/GY 0.75 INJECTOR CONTROL 2 STANDARD
6 F855 WT/BK 0.5 5-VOLT SUPPLY STANDARD
7 F856 WT/OR 0.5 5-VOLT SUPPLY STANDARD
8 K860 WT/BR 0.75 5 VOLT SUPPLY N/A
9 K915 BR/WT 0.75 SENSOR GROUND STANDARD
10 K42 VT 0.5 KS 1 SIGNAL STANDARD
11 K942 DB 0.5 KS 1 RETURN STANDARD
14 K925 GY/BK 0.5 CKP GROUND STANDARD
16 K17 YL/RD 0.75 COIL CONTROL 2 STANDARD
17 K19 RD/LG 0.75 COIL CONTROL 1 STANDARD
18 K14 BK/RD 0.75 INJECTOR CONTROL 4 STANDARD
19 K13 BR/BK 0.75 INJECTOR CONTROL 3 STANDARD
24 K900 BR/VT 0.5 SENSOR GROUND STANDARD
25 K922 GY/DB 0.5 TP SENSOR RETURN STANDARD
27 K44 OR 0.5 CMP SIGNAL STANDARD
28 K147 BK 0.5 KNOCK SENSOR 1 SHIELD CIRCUIT N/A
29 K24 WT/LG 0.5 CKP SIGNAL STANDARD
31 N35 BK 1.5 INTAKE AIR SOL 2 RETURN STANDARD
32 N33 WT 1.5 INTAKE AIR SOL 1 CONTROL STANDARD
33 N39 YL 1.5 INTAKE AIR SOL 4 RETURN STANDARD
34 N37 DB 1.5 INTAKE AIR SOL 3 RETURN STANDARD
37 K125 GY/RD 0.5 GEN FIELD CONTROL STANDARD
39 K2 LG 0.5 ECT SIGNAL STANDARD
40 G24 YL 0.5 EOT SIGNAL STANDARD
42 K926 DB/GY 0.75 CRANKCASE PRESSURE SENSOR SIGNAL N/A
43 K22 YL/DB 0.5 TP 1 SIGNAL STANDARD
44 G6 GY/LG 0.75 OIL PRESSURE SIGNAL STANDARD
45 K448 RD/VT 0.75 ETC MOTOR (-) STANDARD
46 N34 VT/YL 1.5 INTAKE AIR SOL 2 CONTROL STANDARD
47 N33 WT/RD 1.5 INTAKE AIR SOL 1 CONTROL STANDARD
48 N38 GY 1.5 INTAKE AIR SOL 4 CONTROL STANDARD
49 N37 BR 1.5 INTAKE AIR SOL 3 RETURN STANDARD
52 K150 BK/VT 0.5 TURBOCHARGER SURGE VALVE CONTROL STANDARD
53 K52 YL/BK 0.75 EVAP PURGE CONTROL STANDARD
54 F344 DB/LG 0.5 FUSED ASD RELAY OUTPUT STANDARD
55 K21 WT/LG 0.5 IAT SIGNAL STANDARD
57 K1 WT/RD 0.5 MAP SIGNAL STANDARD
58 K37 WT/YL 0.5 BOOST PRESSURE SIGNAL STANDARD
59 K122 OR/BK 0.5 TP 2 SIGNAL STANDARD
60 K447 WT/VT 0.75 ETC MOTOR (+) STANDARD
(1) Pins not listed are not used for this connector
