Checking The Pcm Power And Ground Circuits: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

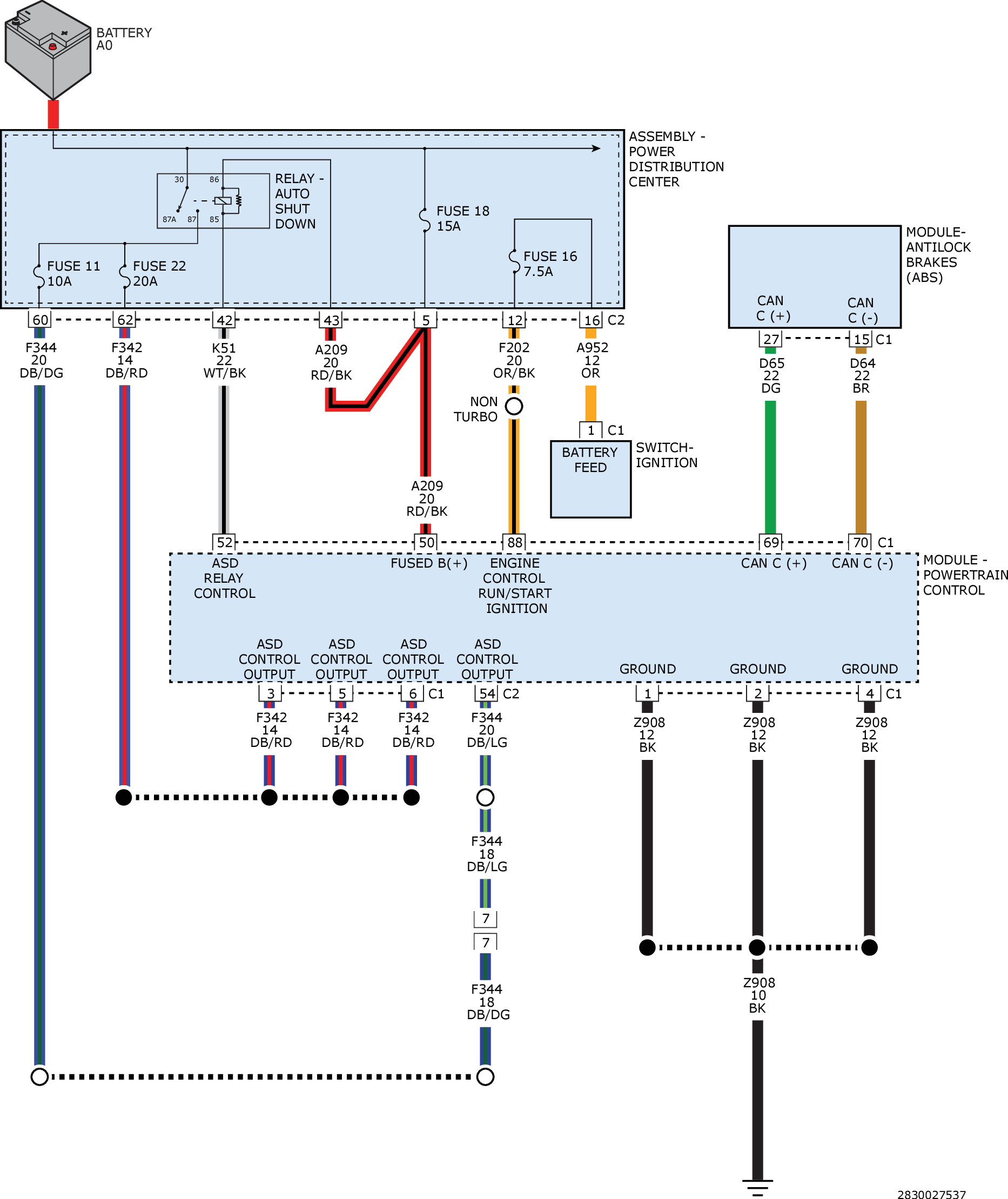

Fig 1: PCM Power & Ground Circuit Diagram
GC0161191Courtesy of CHRYSLER GROUP, LLC
