Module, Transmission Control: Installation: Installation

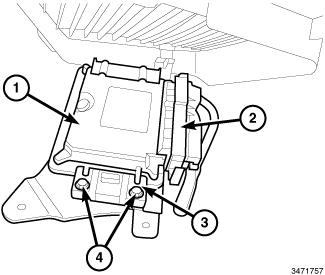

Fig 1: Electrical Connection, Nuts, Mounting Bracket & Electrohydraulic Selection Gearbox Electronic Control Unit

Courtesy of CHRYSLER GROUP, LLC

1. Install the electrohydraulic selection gearbox electronic control unit (1).
2. Install the mounting bracket (3) and install the nuts (4) then tighten.
3. Connect the electrical connection (2) for the electrohydraulic selection gearbox electronic control unit.

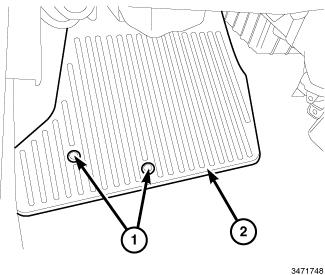

   Fig 2: Bolts & Electronic Control Unit Protection Cover

   Courtesy of CHRYSLER GROUP, LLC
4. Reposition the electronic control unit protection cover (2) install the bolts (1) and tighten.
5. Only in the case of replacement, connect the Examiner and run the initialization procedure for the gear engagement/selection positions and check that the engagement position travel is correct.
