Rear Hoist Locations

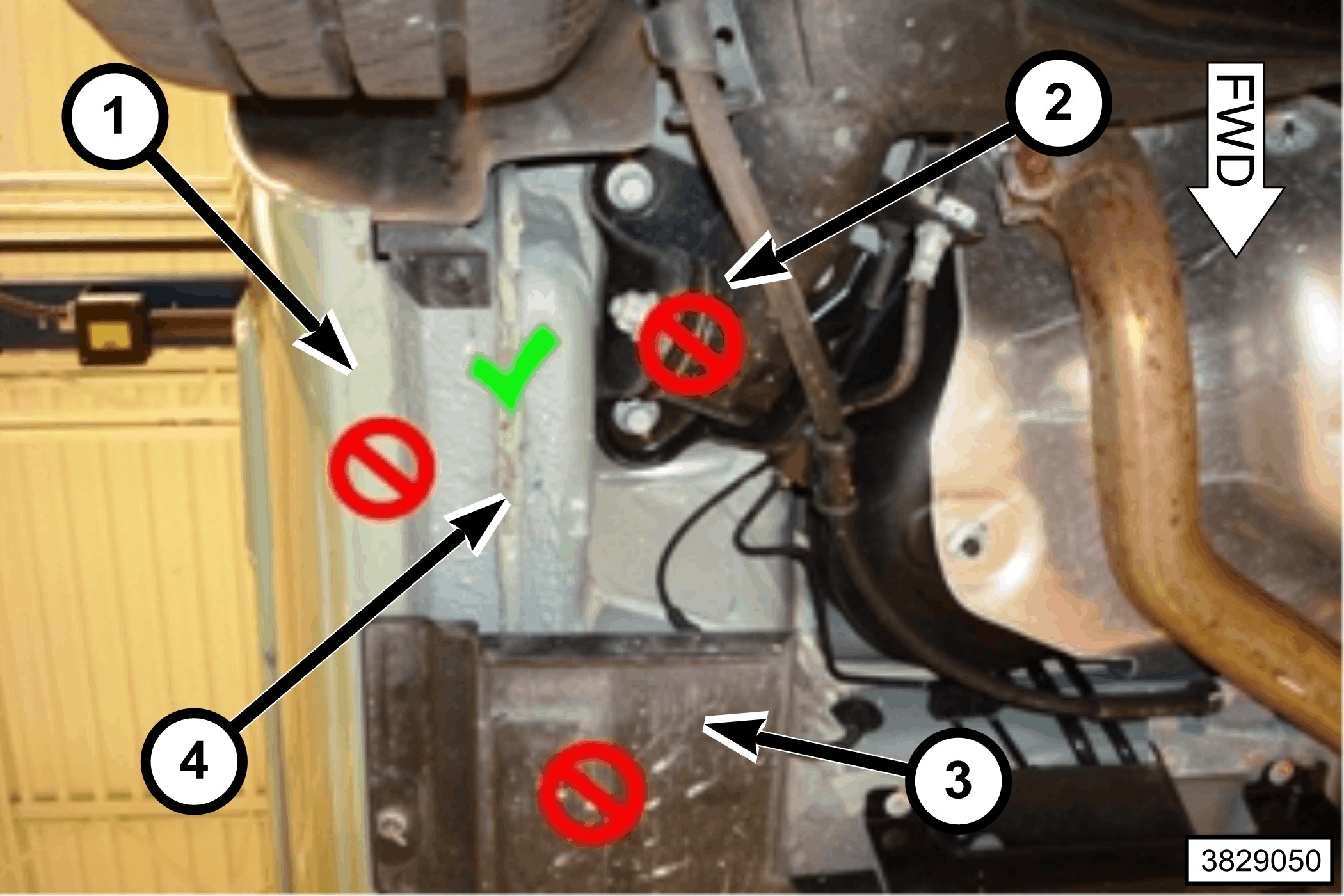

Fig 1: Body Sill Or Cladding, Rear Suspension, Underbody Protection & Flange
GC0153809Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not allow the hoist lift arm or lift pad to contact the body sill or cladding (1), the rear suspension (2), or underbody protection (3) or damage to the vehicle may result.

  1. Place the rear lift pads onto the sill flange (4) and carefully lift vehicle making sure there is no contact with the body side sill (1) and sill cladding.
