Module-Powertrain Control C1

Harness-Family: Body_Front

Color:

Gender: FEMALE

Part Number: AGV87077

Part Description: Not Available

Connector No: D3821K

Option: 16V

Repair Kit Part Number: Not Available

Cavity Count:

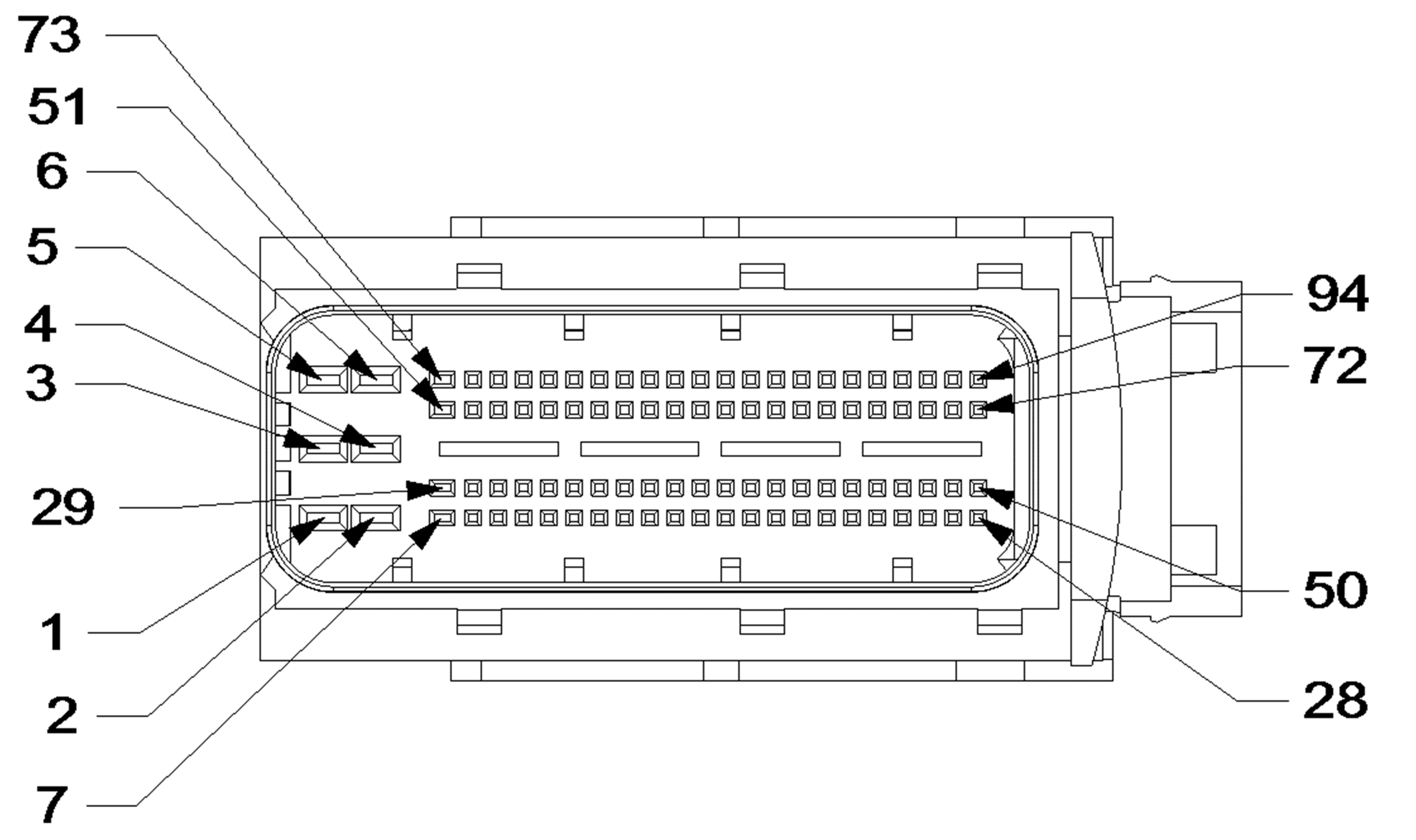

Fig 1: Module-Powertrain Control C1 Connector End View

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z908	BK	12	GROUND	N/A
1	A64	WT	22	ELEC FUEL PMP RLY FD	N/A
13	D64	BR	22	CAN C (-)	N/A
14	D65	DG	22	CAN C (+)	N/A
16	C18	GY	22	A/C PRESSURE SIGNAL	N/A
16	K859	RD	22	5 VOLT SUPPLY	N/A
17	F202	OR	20	IGNITION RUN/START CONTROL OUTPUT	N/A
19	K173	YL	22	RADIATOR FAN RELAY CONTROL	N/A
2	Z908	BK	12	GROUND	N/A
2	K51	WT	22	ASD RELAY CONTROL	N/A
21	K914	BK	22	SENSOR GROUND	N/A
22	K167	BK	20	APP SENSOR GROUND 1	N/A
23	K400	BK	20	APP SENSOR GROUND 2	N/A
24	K617	BK	22	RUN/START RELAY CONTROL	N/A
25	T141	VT	22	CLUTCH INTERLOCK SIGNAL	N/A
28	A502	GY	20	12 V HI SIDE DRV	N/A
3	F342	DB	14	ASD CONTROL OUTPUT	N/A
3	K175	YL	22	RADIATOR FAN RELAY CONTROL	N/A
31	L56	DG	22	BRAKE LAMP SWITCH OUTPUT	N/A
31	Z115	BR	20	GROUND	N/A
32	K175	YL	22	RADIATOR FAN RELAY CONTROL	N/A
33	K173	YL	22	RADIATOR FAN RELAY CONTROL	N/A
34	T141	BR	20	CLUTCH INTERLOCK SIGNAL	EARLY
35	C281	YL	22	A/C CLUTCH RELAY CONTROL	N/A
36	K852	DB	20	5 VOLT SUPPLY	N/A
37	K854	DB	20	5 VOLT SUPPLY	N/A
38	C818	DB	22	A/C PRESSURE 5 VOLT SUPPLY	N/A
39	K917	WT	22	SENSOR GROUND	N/A
4	Z908	BK	12	GROUND	N/A
4	K299	BR	20	O2 1/2 HEATER CONTROL SUPPLY	N/A
42	K914	BK	22	SENSOR GROUND	N/A
43	G6	GY	20	OIL PRESSURE SIGNAL	N/A
45	K902	GY	20	O2 RETURN (UPSTREAM)	N/A
46	K904	DG	20	O2 RETURN (DOWNSTREAM)	N/A
47	G109	RD	20	FUEL LEVEL SENSE RETURN	N/A
5	F342	DB	14	ASD CONTROL OUTPUT	N/A
5	K99	BR	20	O2 1/1 HEATER CONTROL	N/A
50	A209	RD	20	FUSED B(+)	N/A
51	K79	BR	20	O2 1/1 HEATER CONTROL	N/A
52	K51	WT	22	ASD RELAY CONTROL	N/A
52	A209	RD	20	FUSED B(+)	N/A
53	K400	BK	20	APP SENSOR GROUND 2	N/A
53	A209	RD	20	FUSED B(+)	N/A
55	K167	BK	20	APP SENSOR GROUND 1	N/A
57	T2	WT	22	BACKUP LAMP SWITCH SUPPLY	8V WITH MTA
58	N7	DG	22	FUEL TANK PRESSURE SIGNAL	N/A
58	K23	GY	20	APP SIGNAL 1	N/A
59	K29	GY	20	APP SIGNAL 2	N/A
6	F342	DB	14	ASD CONTROL OUTPUT	N/A
61	K23	GY	20	APP SIGNAL 1	N/A
61	K41	BR	20	O2 1/1 SIGNAL	N/A
62	L56	DG	22	BRAKE LAMP SWITCH OUTPUT	N/A
62	K141	WT	20	O2 1/2 SIGNAL	N/A
63	K141	WT	20	O2 1/2 SIGNAL	N/A
64	K103	BR	20	O2 1/1 PUMP CELL CURRENT TRIM	N/A
65	K89	GY	20	O2 1/1 POSITIVE CURRENT CONTROL	N/A
69	D65	DG	22	CAN C (+)	N/A
70	D64	BR	22	CAN C (-)	N/A
72	T752	OR	22	STARTER RELAY CONTROL	N/A
76	K71	BR	20	OBD VENT VALVE CONTROL	N/A
77	K299	BR	20	O2 1/2 HEATER CONTROL SUPPLY	N/A
78	K617	RD	22	RUN/START RELAY CONTROL	N/A
8	C281	YL	22	A/C CLUTCH RELAY CONTROL	N/A
8	K137	LB	18	WASTEGATE SOL CONTROL	N/A
80	K107	BR	20	ESM SIGNAL	N/A
82	C18	GY	22	A/C PRESSURE SIGNAL	N/A
83	K29	GY	20	APP SIGNAL 2	N/A
84	T26	BR	22	CLUTCH UPSTOP SIGNAL	N/A
85	K904	DG	20	O2 RETURN (DOWNSTREAM)	N/A
86	K41	BR	20	O2 1/1 SIGNAL	N/A
87	K902	WT	20	O2 RETURN (UPSTREAM)	N/A
88	F202	OR	20	IGNITION RUN/START CONTROL OUTPUT	N/A
9	T26	BR	20	CLUTCH UPSTOP SIGNAL	N/A
94	A64	WT	22	ELEC FUEL PMP RLY FD	N/A
