Home >> Eagle >> 1998 >> Talon Base, Automatic >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> Passenger Compartment >> Notes

Passenger Compartment: Notes

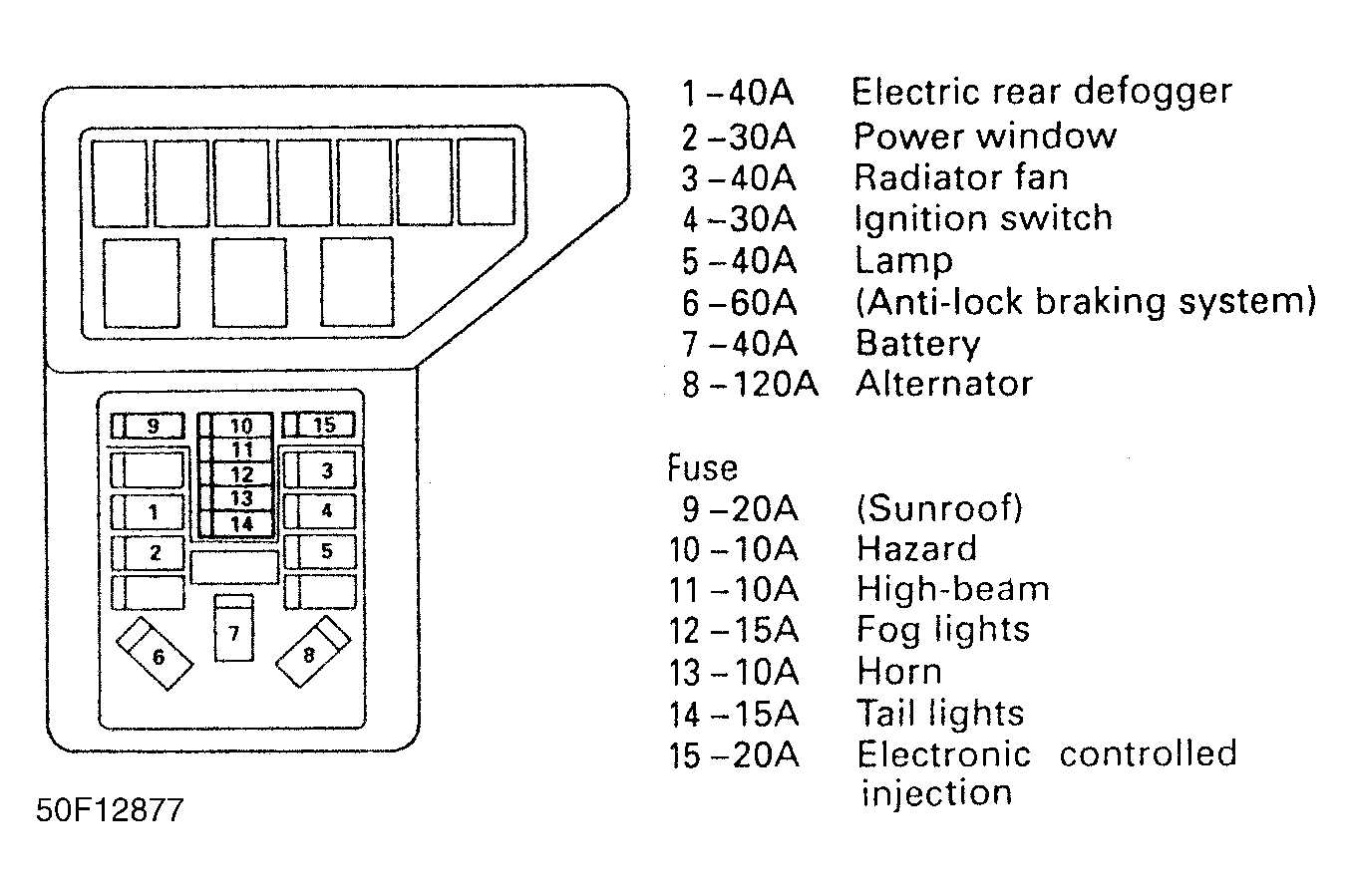

Fig 1: Passenger Compartment Fuse Box

G50F12877

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
