Diagnosis & Repair Procedure

1. Disconnect receiver harness connector. Receiver is located behind driver's side rear interior quarter panel. See Fig 1 . Set dome light switch to DOOR position.
   NOTE: Also see appropriate ILLUMINATION/INTERIOR LIGHTS wiring diagram under WIRING DIAGRAMS  .
2. Using DVOM, measure voltage between receiver harness connector terminal No. 11 and ground. See Fig 2 . If battery voltage does not exist, replace receiver. If battery voltage exists, inspect the following circuits:
   • Between dome light and ETACS ECU.
   • Between foot lights and ETACS ECU.
   • Between dome light and receiver.
   • Between foot lights and receiver.
   • Between receiver and ETACS ECU.
   • Fuse No. 8 in junction block.
   • Fuse No. 10 and 11 in PDC (Avenger and Sebring).
   • Fuse No. 11 and 12 in PDC (Talon).

See appropriate wiring diagram in WIRING DIAGRAMS  . Repair circuits as needed.

Fig 1: Locating Remote Keyless Entry Receiver (Typical)

Courtesy of CHRYSLER CORP.

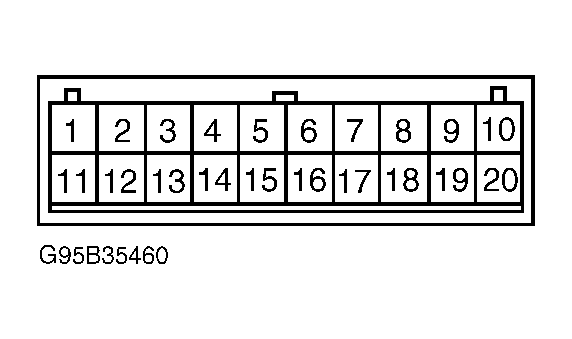

Fig 2: Identifying Receiver Harness Connector Terminals
