EGR Diagnostic Chart: Notes

NOTE: Ensure correct diagnostic chart is used. The EGR solenoid/transducer assembly may be referred to as Electric EGR Transducer (EET) in diagnostic charts.

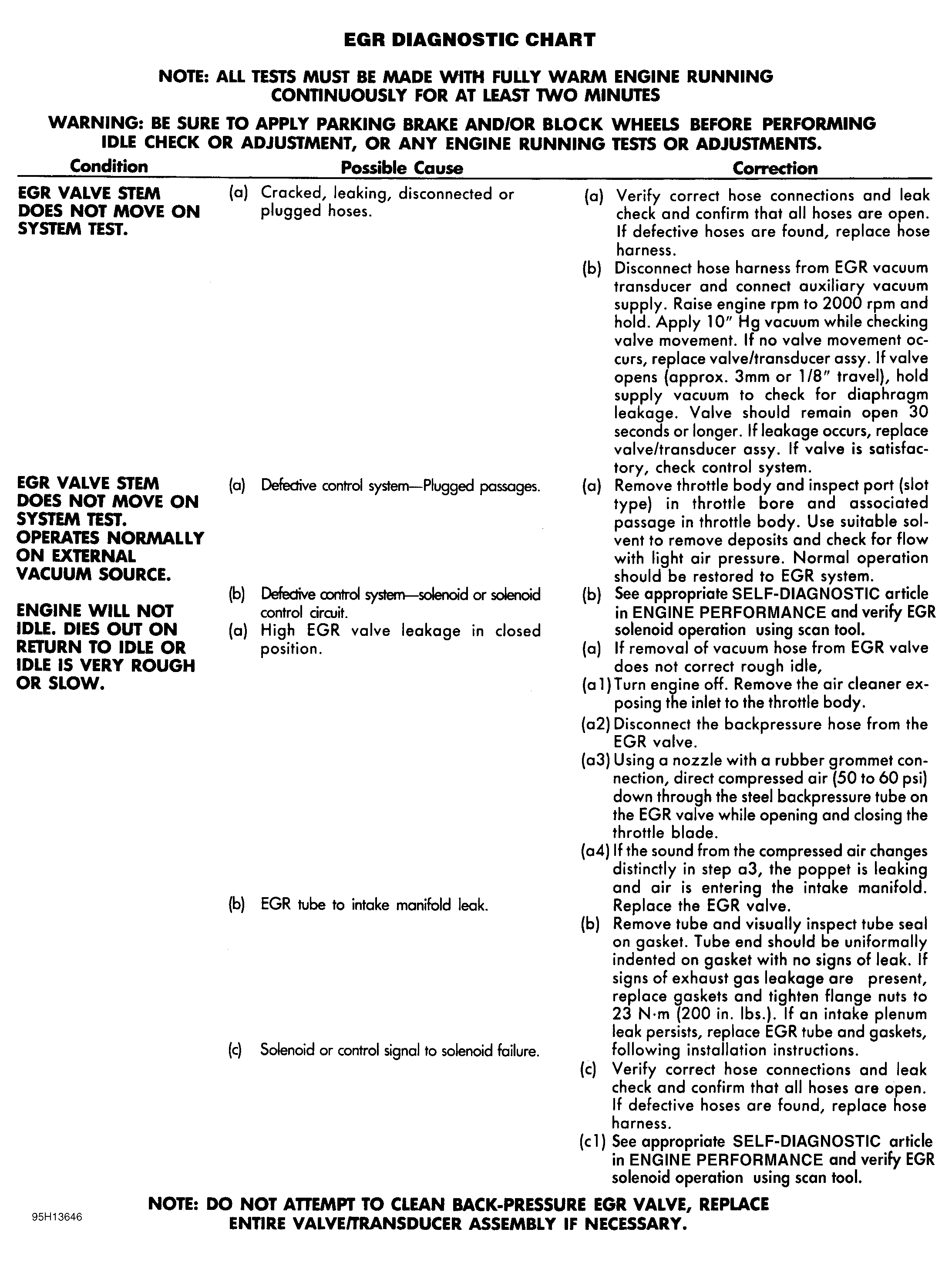

Fig 1: EGR Diagnostic Chart (Acclaim, Concorde (3.3L), Intrepid (3.3L), LeBaron, Spirit & Vision (3.3L)
G95H13646Courtesy of CHRYSLER CORP.
