Power Steering Pump: Disassembly

  1. Remove rear pump cover, "O" ring, cam case and cam ring. Remove vanes from rotor. Remove snap ring from shaft and remove rotor. Using plastic hammer, tap shaft and pulley assembly from pump. See Fig 1 .
  2. Remove hose connections and "O" rings. Remove flow control valve and spring from under pressure hose connector. DO NOT  disassemble flow control valve. Remove oil seal from pump body. Remove pressure switch. Remove "O" ring, spring, plunger and piston rod from under pressure switch.

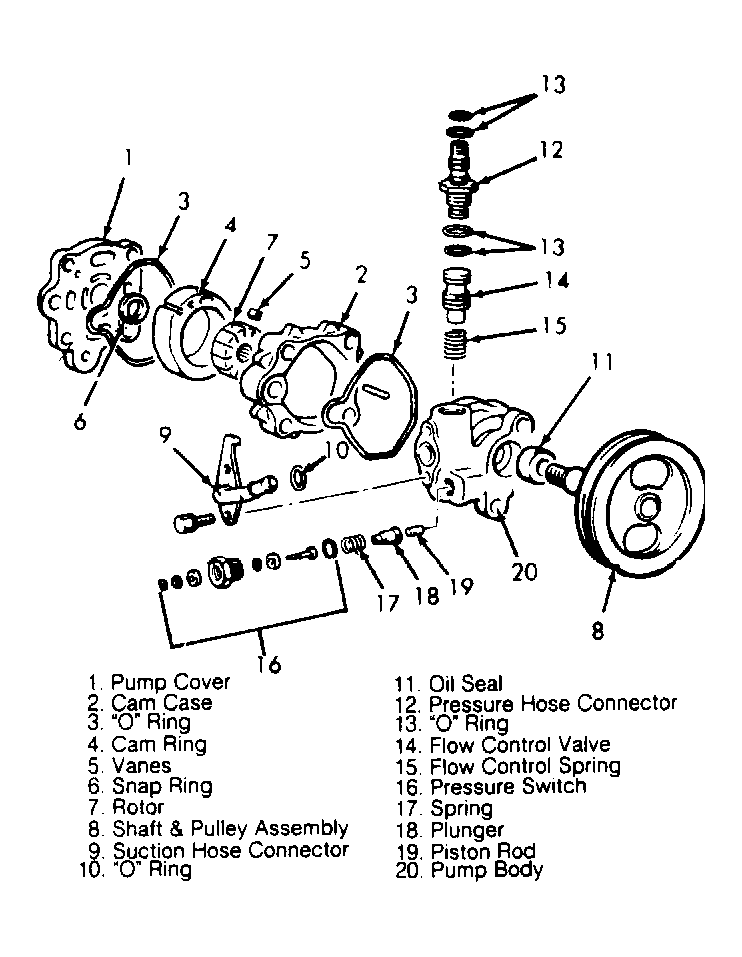

Fig 1: Exploded View Of Power Steering Pump
G90B03363Courtesy of CHRYSLER CORP.
