Eagle
>>
1990
>>
Summit Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Test Charts - 2.0L
>>
Dr-12: Checking Barometric Pressure Sensor - Turbo
Dr-12: Checking Barometric Pressure Sensor - Turbo

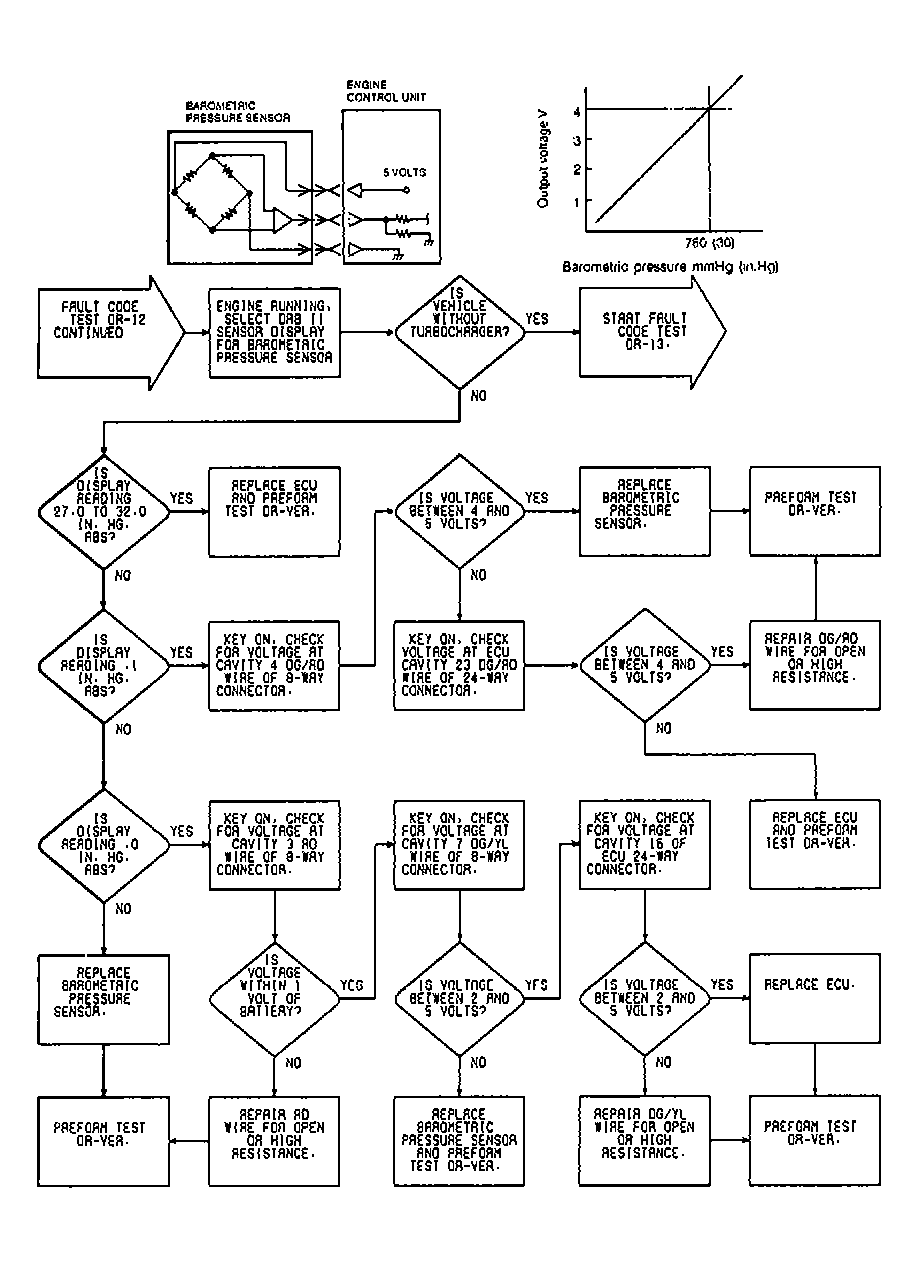

Fig 1: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (1 of 2)

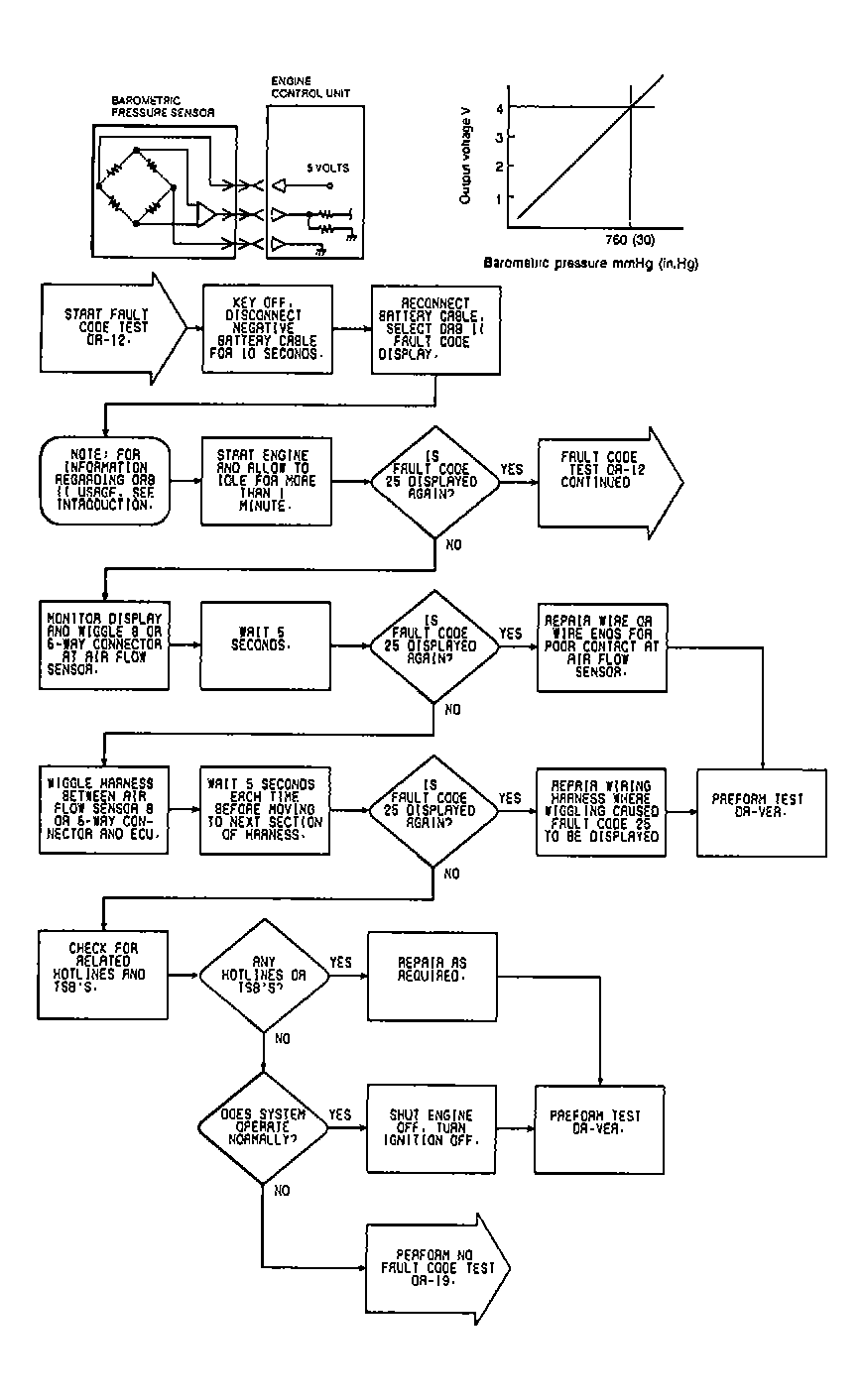

Fig 2: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (2 of 2)
