Front Wiper Relay Continuity Check

  1. On all models equipped with an external front wiper relay, remove the relay from the wiper motor bracket. Ensure continuity is present between terminals No. 2 and 5. See Fig 1 .

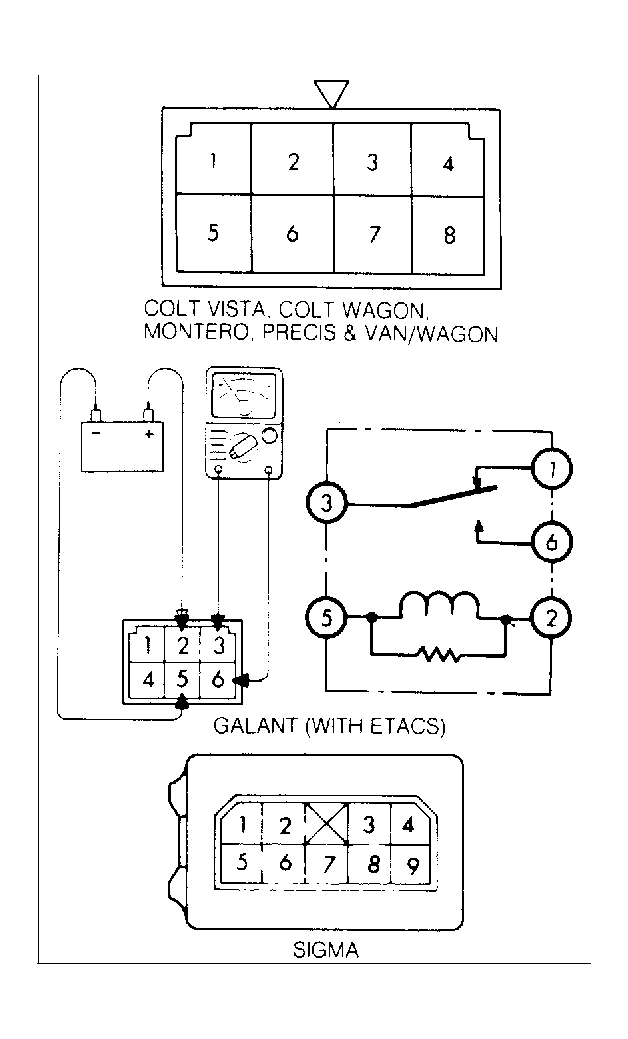

Fig 1: Identifying Wiper Relay Terminals
G91E00083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
