Dr-4: Checking Airflow Sensor - Non-Turbo

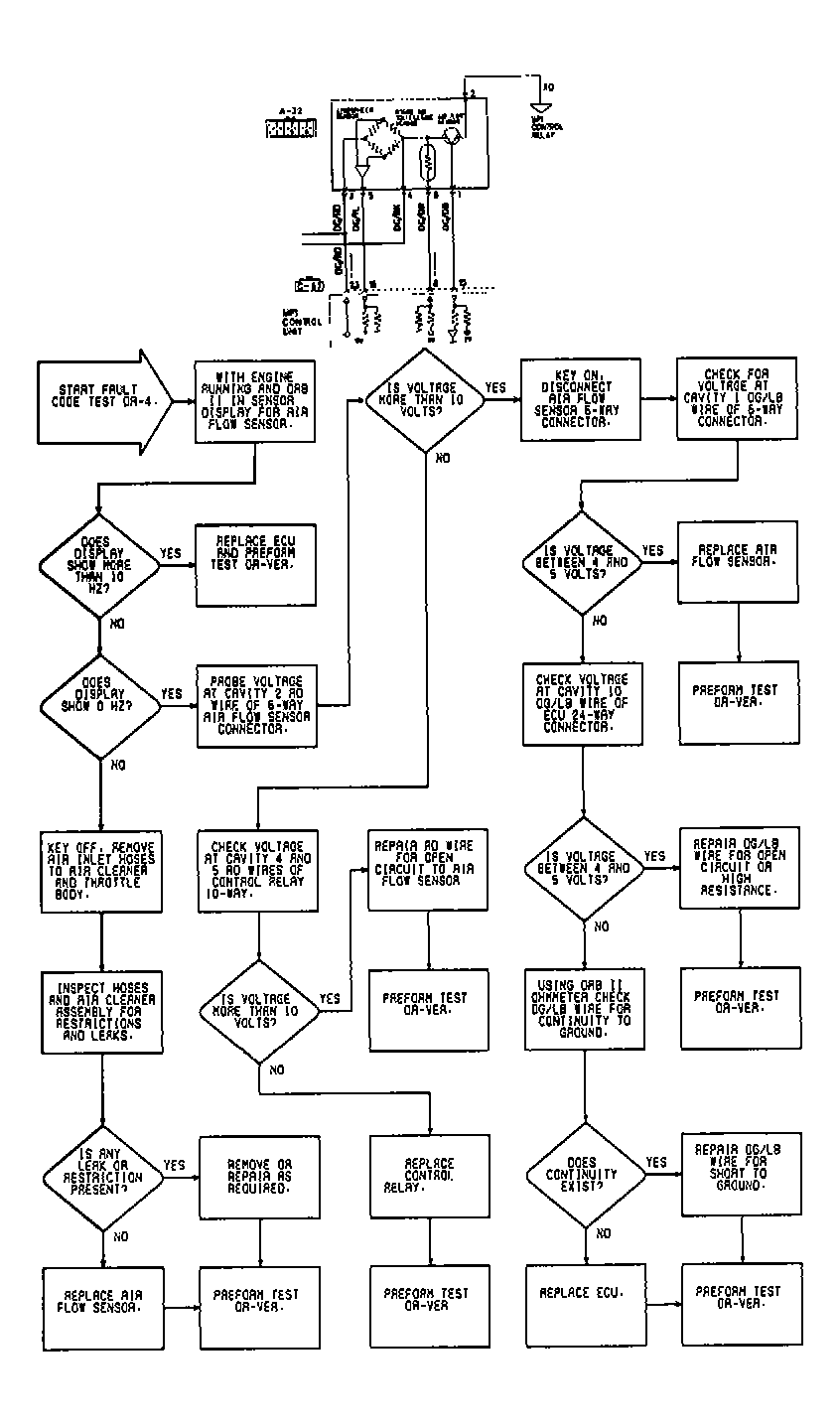

Fig 1: DR-4 Flow Chart & Circuit Diagram (2.0L Non-Turbo)

G90I12672
