Fault 1067 - Latch Relay Line Low

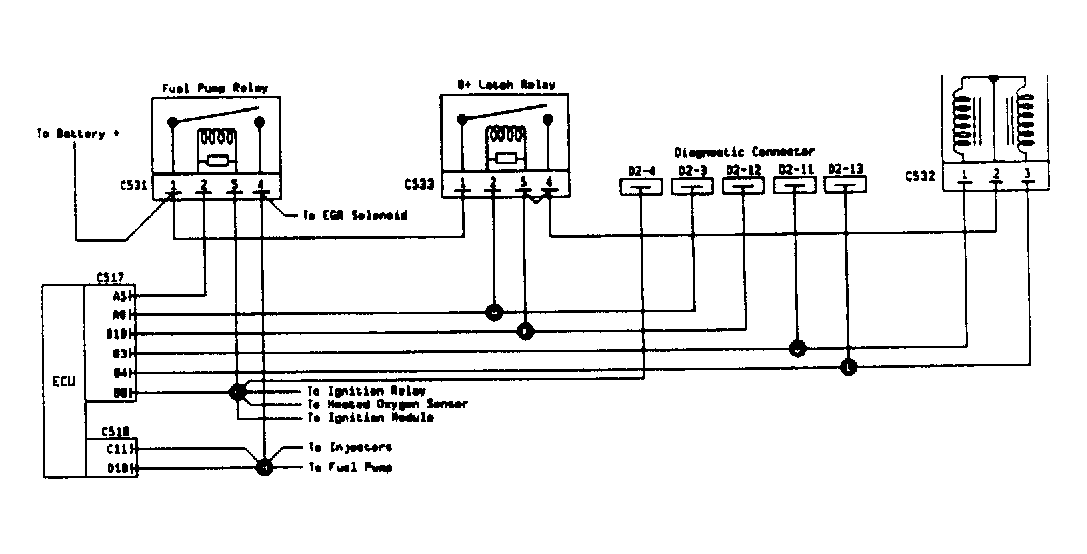

Fig 1: Fault 1067 - Latch Relay Line Low Schematic

G108456

Courtesy of CHRYSLER MOTORS

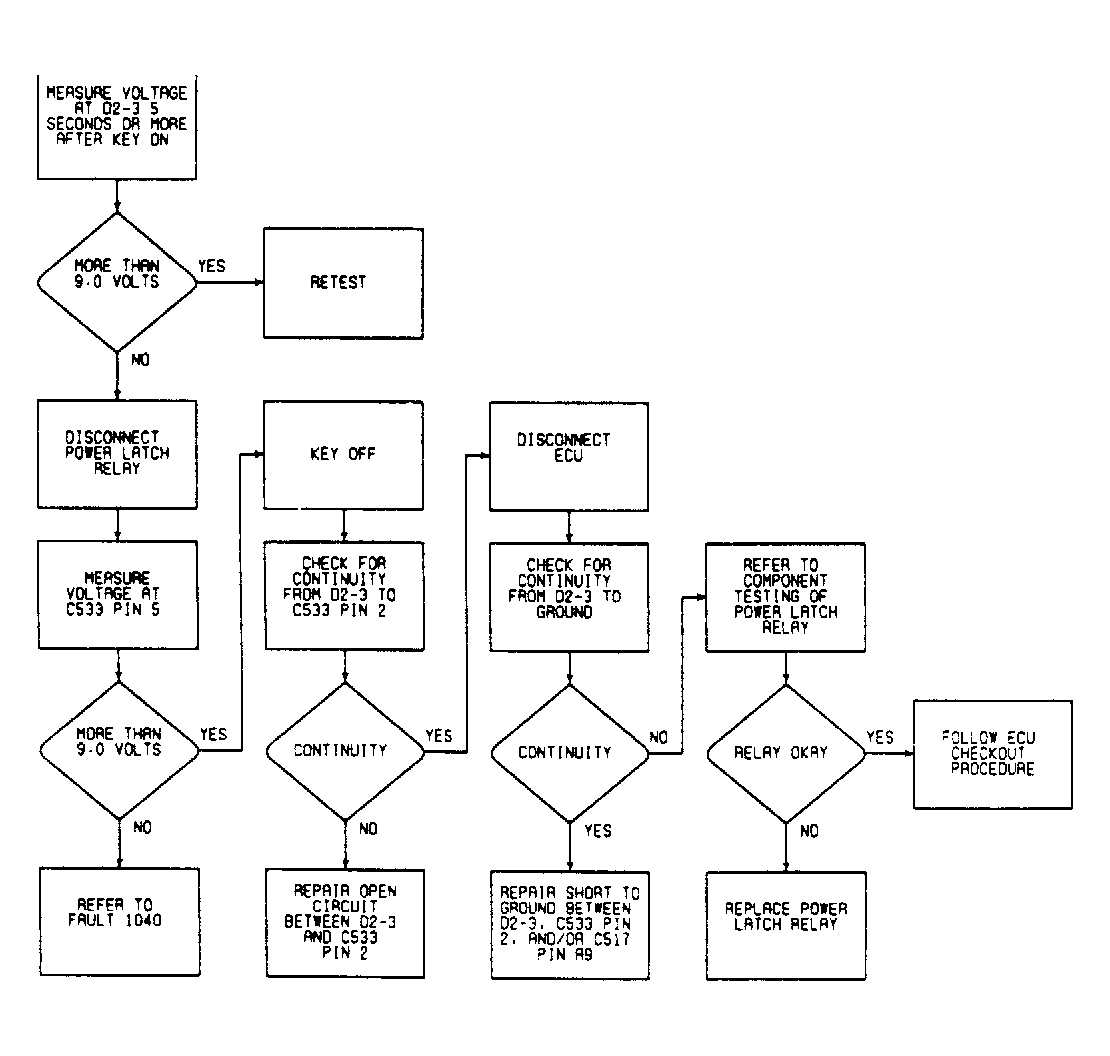

Fig 2: Fault 1067 - Flow Chart

G108457

Courtesy of CHRYSLER MOTORS
