Fault 1052 - Map Sensor Out Of Limits

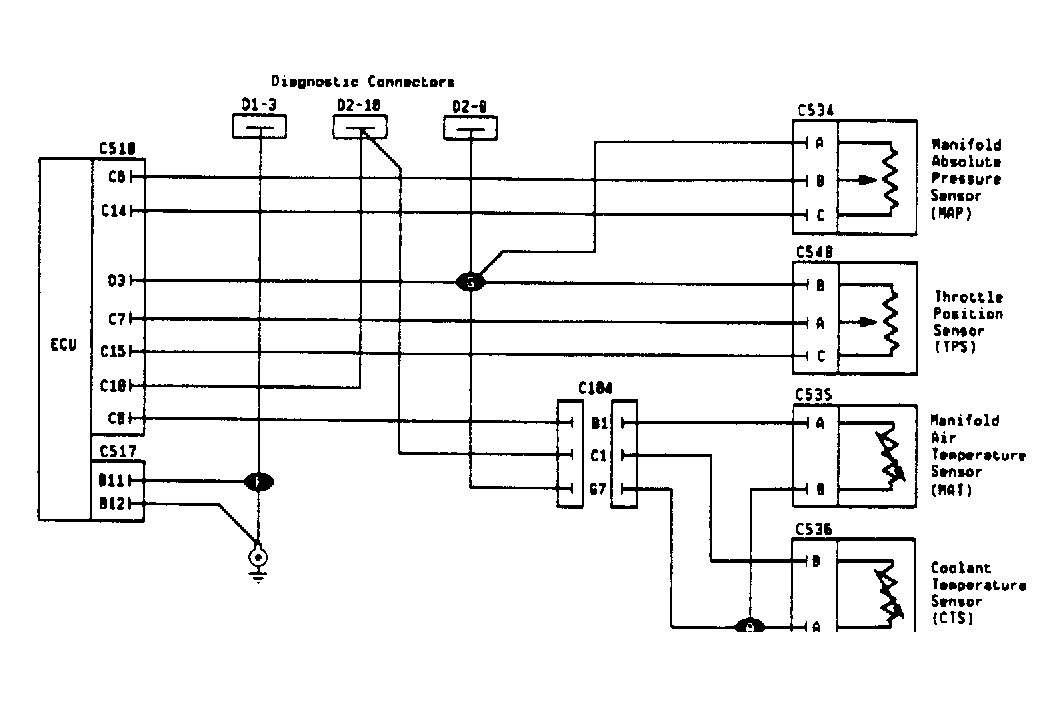

Fig 1: Fault 1052 - MAP Sensor Out of Limits Schematic

G108422

Courtesy of CHRYSLER MOTORS

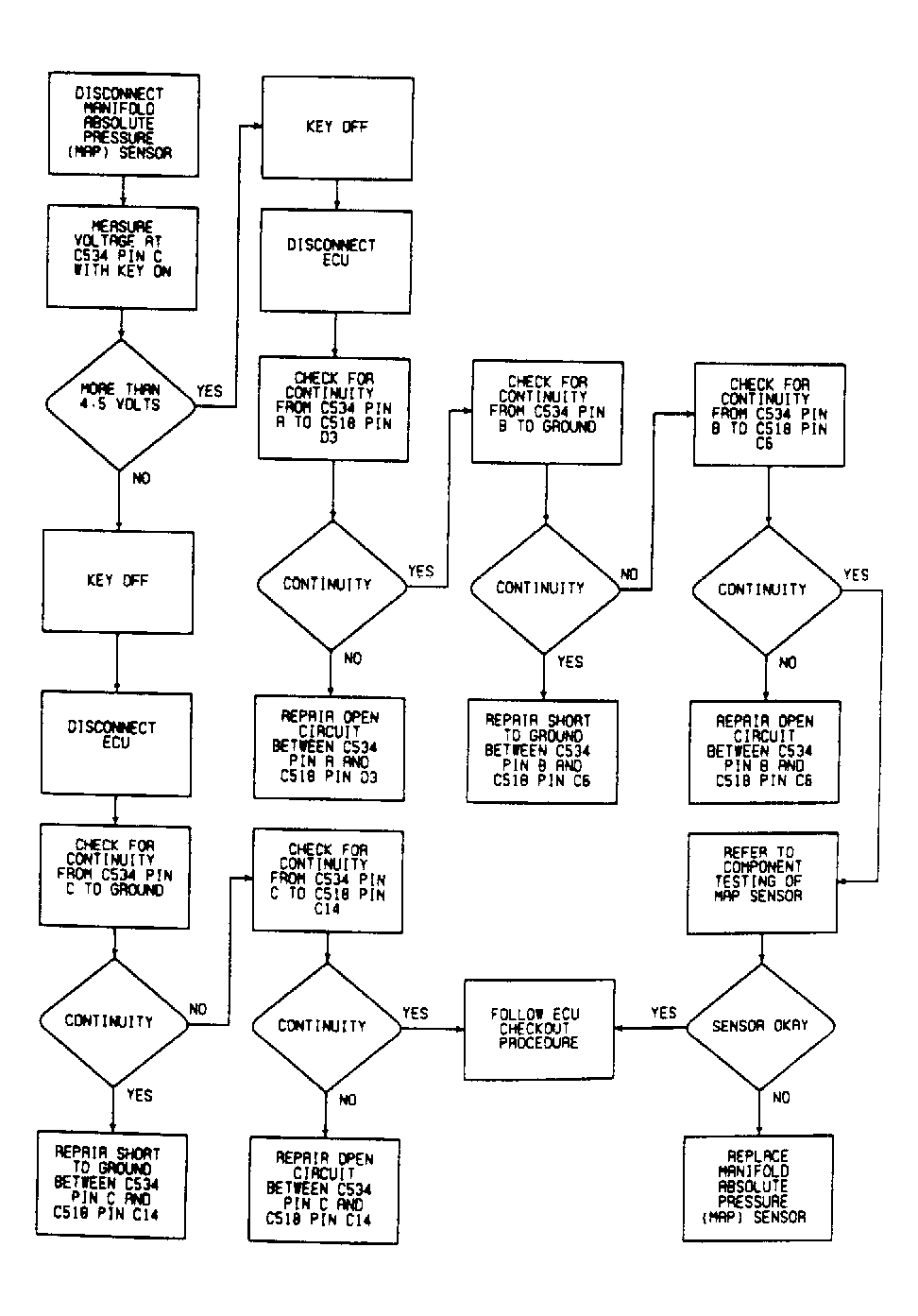

Fig 2: Fault 1052 - Flow Chart

G108423

Courtesy of CHRYSLER MOTORS
