Fault 1014 - Fuel Pump Line Low

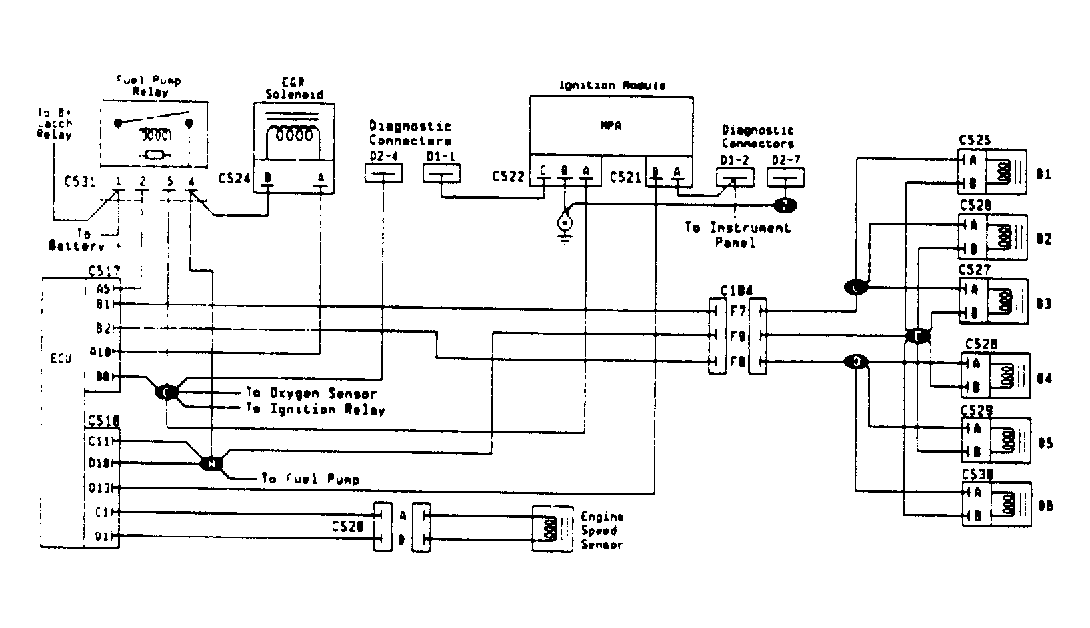

Fig 1: Fault 1014 - Fuel Pump Line Low Schematic

G108365

Courtesy of CHRYSLER MOTORS

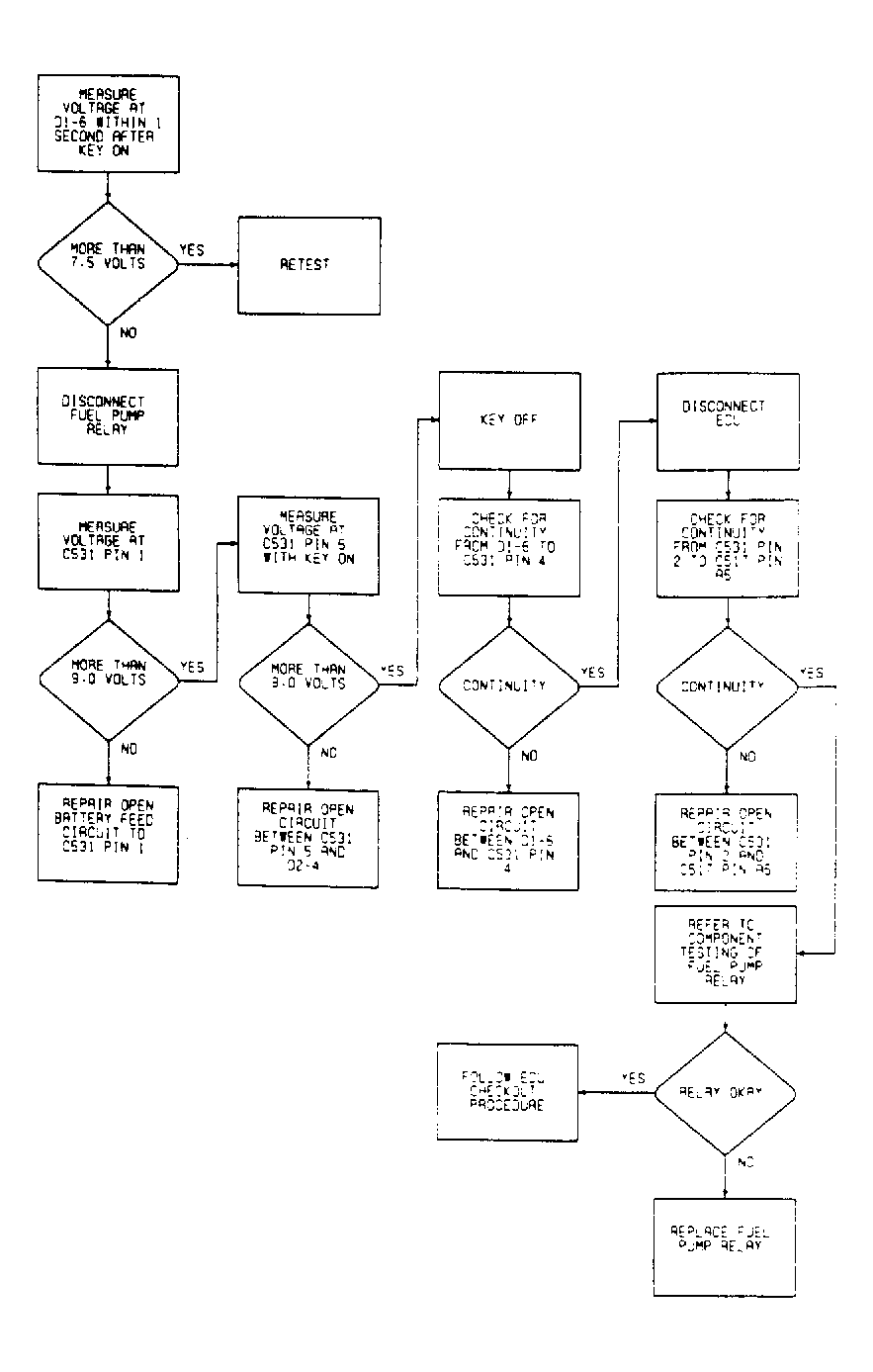

Fig 2: Fault 1014 - Flow Chart

G108366

Courtesy of CHRYSLER MOTORS
