Fault 1059 - Low A/C Request Line

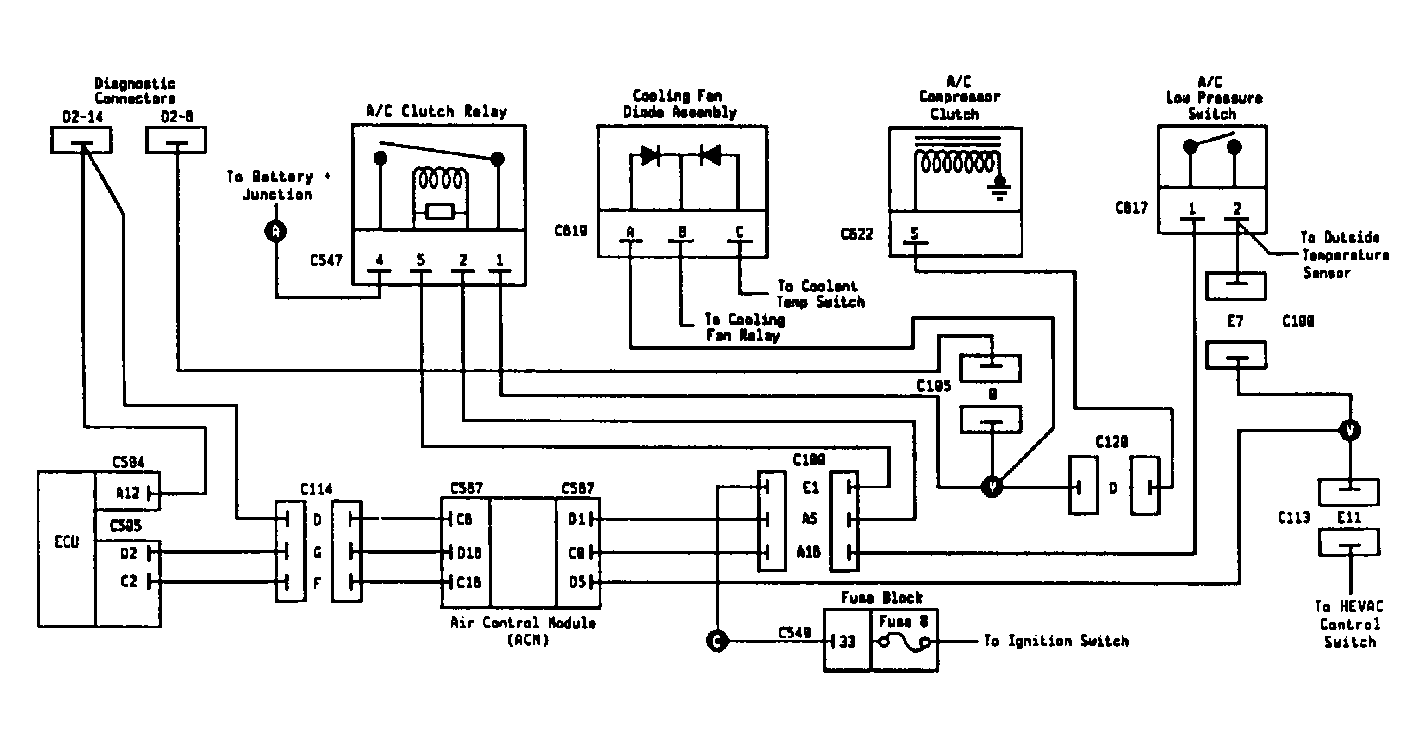

Fig 1: Fault 1059 (1 of 2) - A/C System Schematic

G108219

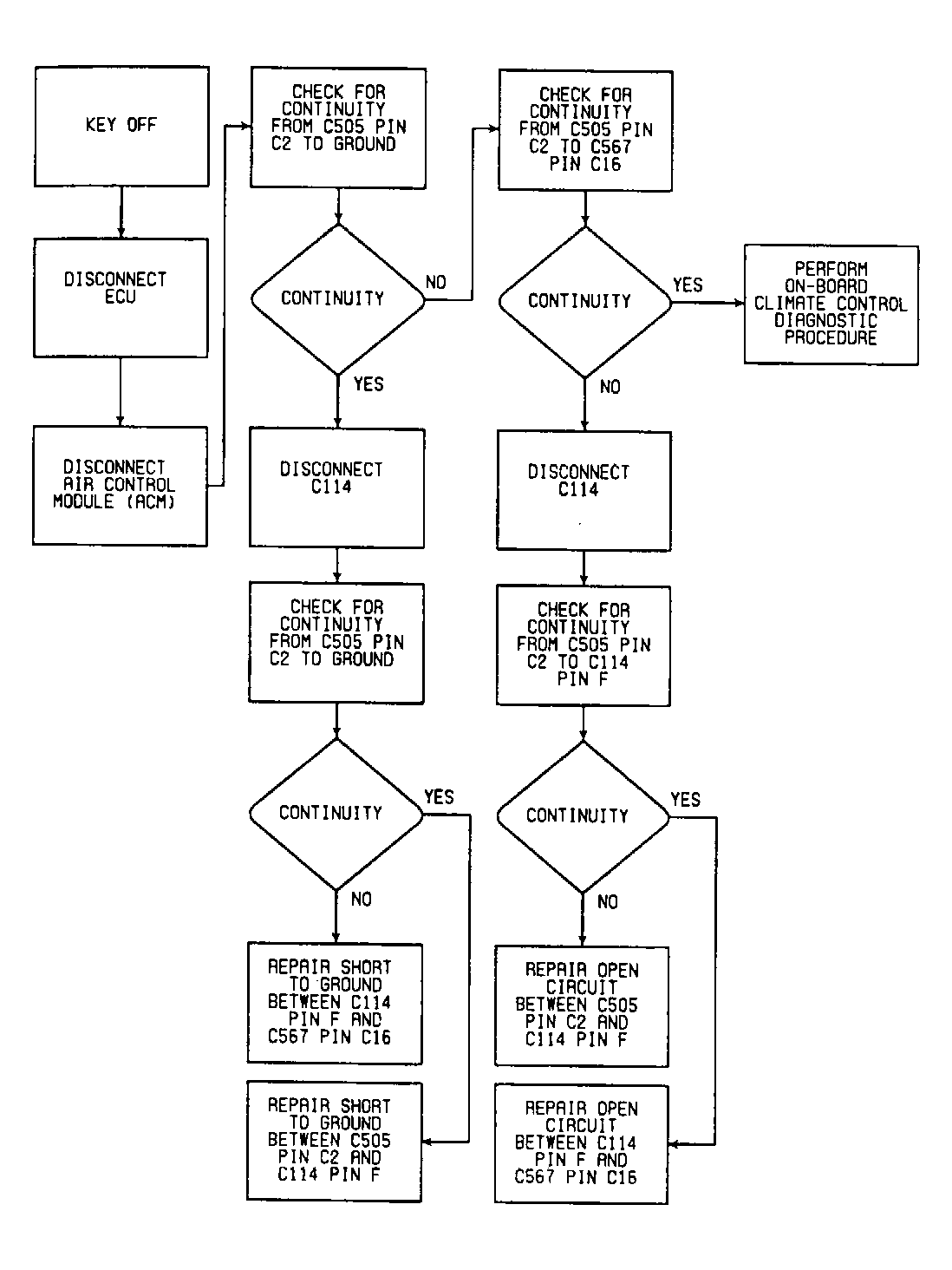

Fig 2: Fault 1059 (2 of 2) - A/C Request Line Low Flow Chart

G108220
