Fault 1052 - Map Sensor Out Of Limits

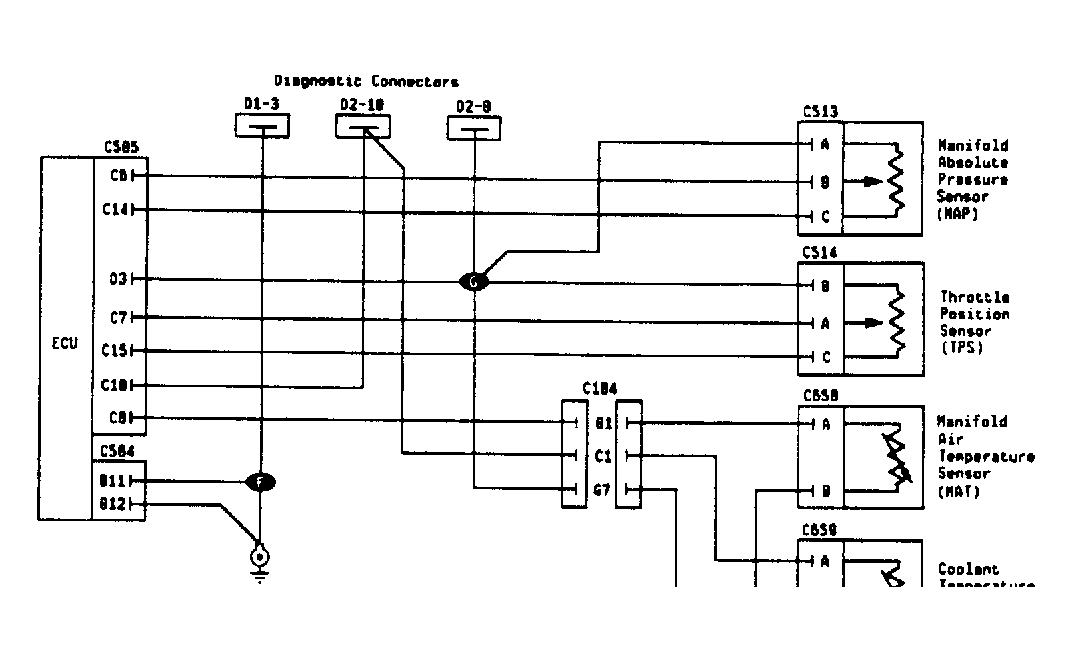

Fig 1: Fault 1052 (1 of 2) - Map Sensor Schematic
G108202

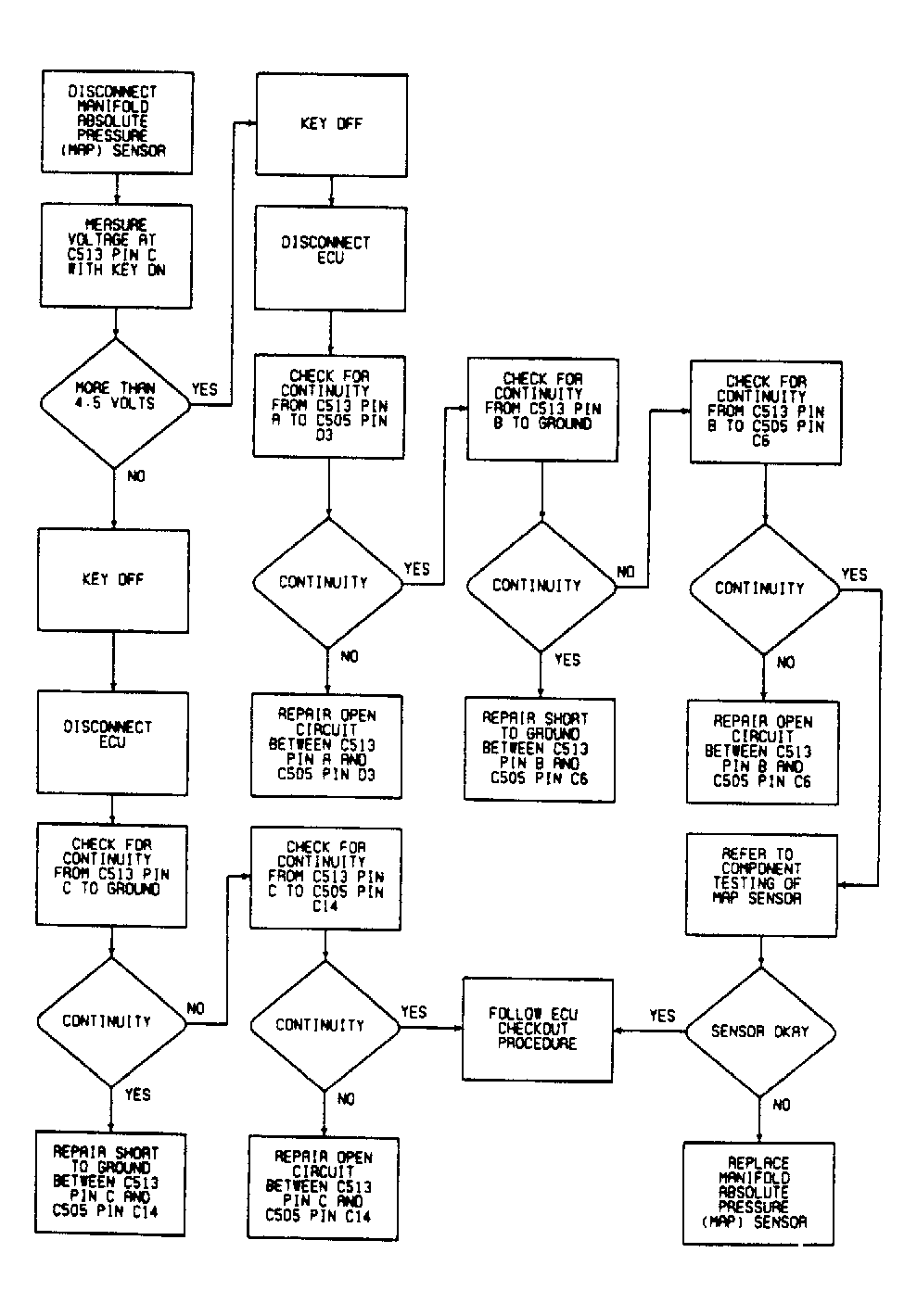

Fig 2: Fault 1052 (2 of 2) - Map Sensor Out Of Limits Flow Chart
G108203
