Removal And Installation: Installation

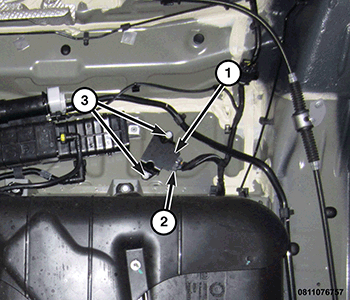

GC0171334Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel pump control module (1) in the bracket.
  2. Install the fuel pump control module mounting bolts (3) and tighten to 10 N.m (89 in. lbs.).
  3. Connect the wire harness connector (2) to the module.
  4. Remove the support and lower the vehicle.
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
