Third Row Anchor - Outboard
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

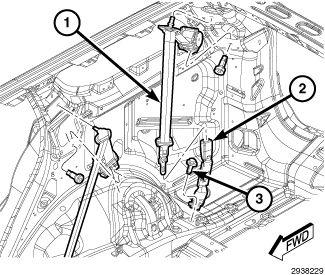

- Position the anchor plate of the lower anchor buckle (2) to the floor panel.
- Install and tighten the screw that secures the anchor plate of the lower anchor buckle to the floor panel. Tighten the screw to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Engage the third row seat belt (1) anchor latch plate to the lower anchor buckle.
