Module, Keyless Ignition Node (Kin): Installation

Courtesy of CHRYSLER GROUP, LLC

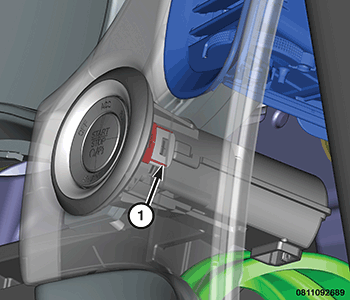

1. Align the KIN to the instrument panel bezel allowing the retaining tabs (1) to secure the KIN in position.

   Courtesy of CHRYSLER GROUP, LLC

2. Connect the electrical connector (1) to the KIN.

   Courtesy of CHRYSLER GROUP, LLC

3. Place the steering column gap hider back to its installed position, engaging all the snap clips.
4. Install instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
5. If the KIN is being replaced, perform the RFHM verification test. Refer to STANDARD PROCEDURE .
