Tr6060 Manual Transmission (Service Information): Disassembly: MAINSHAFT

Courtesy of CHRYSLER GROUP, LLC

1. Position Puller (special tool #C-293-PA, Puller, Press) (1) and Adapters (special tool #C-293-47, Block Set, Puller) (2) on mainshaft bearing. Place Button (special tool #10027, Button, Press) in end of mainshaft.

   Courtesy of CHRYSLER GROUP, LLC

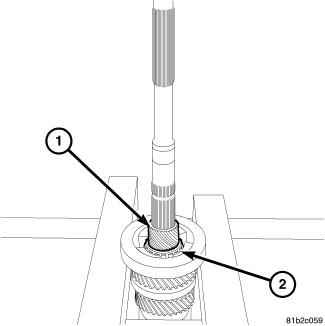

2. Remove sixth gear (1) and mainshaft bearing (2) with Puller (special tool #C-293-PA, Puller, Press), Adapters (special tool #C-293-47, Block Set, Puller), Button (special tool #10027, Button, Press) and a press.

   Courtesy of CHRYSLER GROUP, LLC

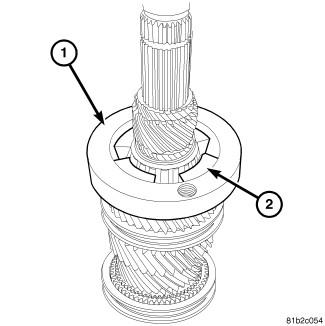

3. Remove first gear (1) from mainshaft (2).

   Courtesy of CHRYSLER GROUP, LLC

4. Remove first gear bearing (1) from mainshaft (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Remove first gear synchronizer rings (1) from 1-2 synchronizer hub (2).

   Courtesy of CHRYSLER GROUP, LLC

6. Remove 1-2 synchronizer hub split ring retainer (1) from split rings (2).

   Courtesy of CHRYSLER GROUP, LLC

7. Remove 1-2 synchronizer hub split rings (1) from mainshaft (2).

   Courtesy of CHRYSLER GROUP, LLC

8. Remove 1-2 synchronizer hub sleeve (1) and detents (2).

   Courtesy of CHRYSLER GROUP, LLC

9. Remove 1-2 synchronizer hub (1) from mainshaft. If necessary, insert a screw driver into the detent recess and pry upward.

   Courtesy of CHRYSLER GROUP, LLC

10. Remove second gear, black carbon, synchronizer rings (1) from second gear (2).

    Courtesy of CHRYSLER GROUP, LLC

11. Remove second gear (1) from mainshaft.

    Courtesy of CHRYSLER GROUP, LLC

12. Remove second gear bearing spacer (1) from mainshaft (2).

    Courtesy of CHRYSLER GROUP, LLC

13. Remove second gear bearing (1) from mainshaft (2).

    Courtesy of CHRYSLER GROUP, LLC

14. Remove 3-4 synchronizer sleeve (1) from 3-4 synchronizer hub (2).

    Courtesy of CHRYSLER GROUP, LLC

15. Remove 3-4 synchronizer detents (1) from 3-4 synchronizer hub (2).

    Courtesy of CHRYSLER GROUP, LLC

16. Remove 3-4 synchronizer hub (1) snap ring (2) from mainshaft.

    Courtesy of CHRYSLER GROUP, LLC

17. Remove 3-4 synchronizer hub (1) from mainshaft (2).

    Courtesy of CHRYSLER GROUP, LLC

18. Remove third gear synchronizer rings (1) from third gear (2).

    Courtesy of CHRYSLER GROUP, LLC

19. Remove third gear (1) from mainshaft (2).

    Courtesy of CHRYSLER GROUP, LLC

20. Remove third gear bearing spacer (1) from mainshaft (2).

    Courtesy of CHRYSLER GROUP, LLC

21. Remove third gear bearing (1) from mainshaft (2).
