Input Shaft

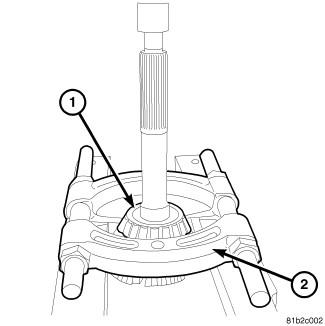

GC0135889Courtesy of CHRYSLER GROUP, LLC
  1. Remove input shaft bearing (1) with Splitter (special tool #1130, Splitter, Bearing/Gear) (2) and a press.
    GC0156599Courtesy of CHRYSLER GROUP, LLC
  2. Remove input shaft bearing (1).

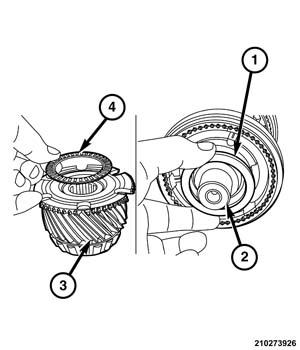

    GC0156765Courtesy of CHRYSLER GROUP, LLC
  3. Remove thrust bearing (4) from the input gear (3).
  4. Remove thrust bearing race (1) from the mainshaft (2).
