Home >> Dodge and Ram >> 2017 >> Durango R/T, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> (Memory Seat Module (MSMD) - Electrical Diagnostics) >> DTC Troubleshooting >> B1D7F-00-Seat Front Vertical Motor Control Circuit Performance - >> Notes

B1D7F-00-Seat Front Vertical Motor Control Circuit Performance -: Notes

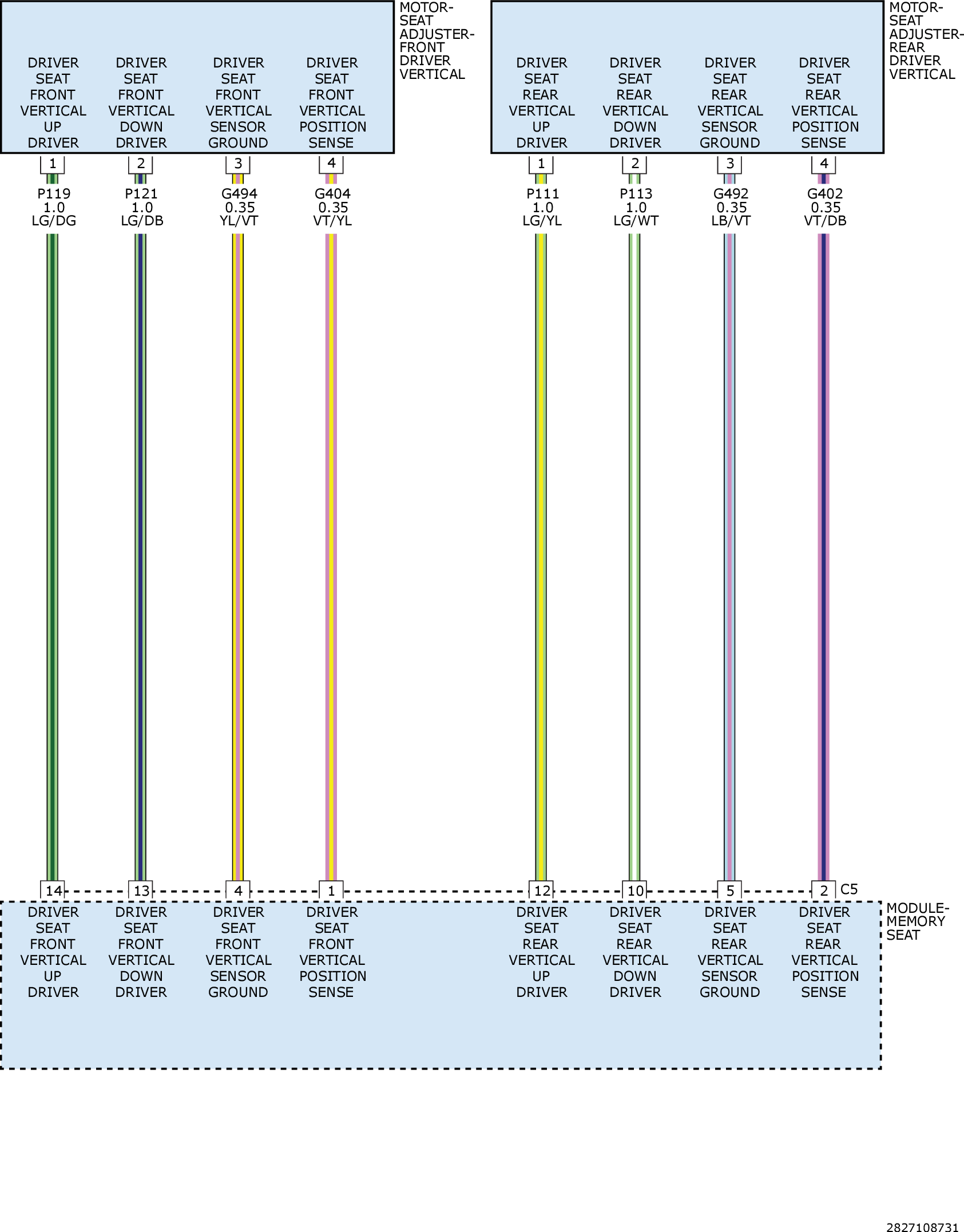

GC0180412

Courtesy of CHRYSLER GROUP, LLC
