Module, Drivetrain Control: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

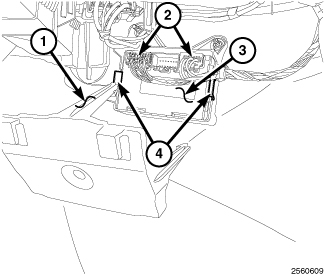

Fig 1: Drivetrain Control Module
GC0094880Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. To gain access to the Drive Train Contol Module (DTCM), position the carpet that is located at the passenger side, away from the dash panel.
  3. Remove cover on the DTCM by pulling up on the upper rear tab (1), and rotaing down and away from the module (3).
  4. Disconnect the module electrical connectors (2).
  5. Using trim stick - (special tool #C-4755, Trim Stick) or equivalent, gently pry back on the retaining tabs on the mounting plate (4) and remove module(3).
