Home >> Dodge and Ram >> 2017 >> Challenger SXT Plus >> Repair and Diagnosis >> Body & Frame >> Seats >> (Memory Seat Module Driver (MSMD) - Electrical Diagnostics) >> DTC Troubleshooting >> B1D7F-00-Seat Front Vertical Motor Control Circuit Performance >> Notes

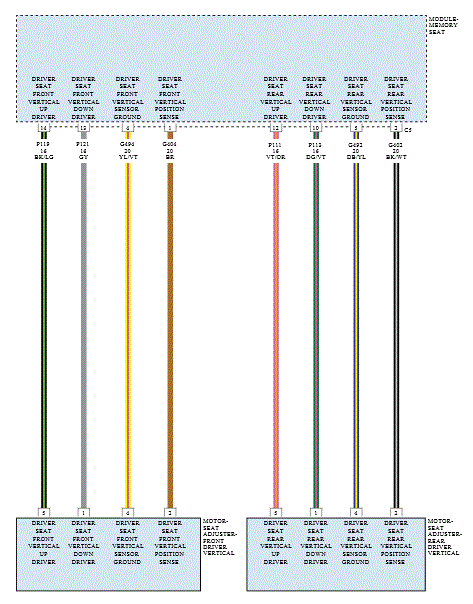

B1D7F-00-Seat Front Vertical Motor Control Circuit Performance: Notes

GC0168276Courtesy of CHRYSLER GROUP, LLC
