B12CF-15-Column Switch Module Front Wiper Signal - Circuit Short To Battery Or Open: Notes

WARNING: This page is about a different car, the 2014 RAM ProMaster 3500, 2014 RAM ProMaster 2500, and 2014 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

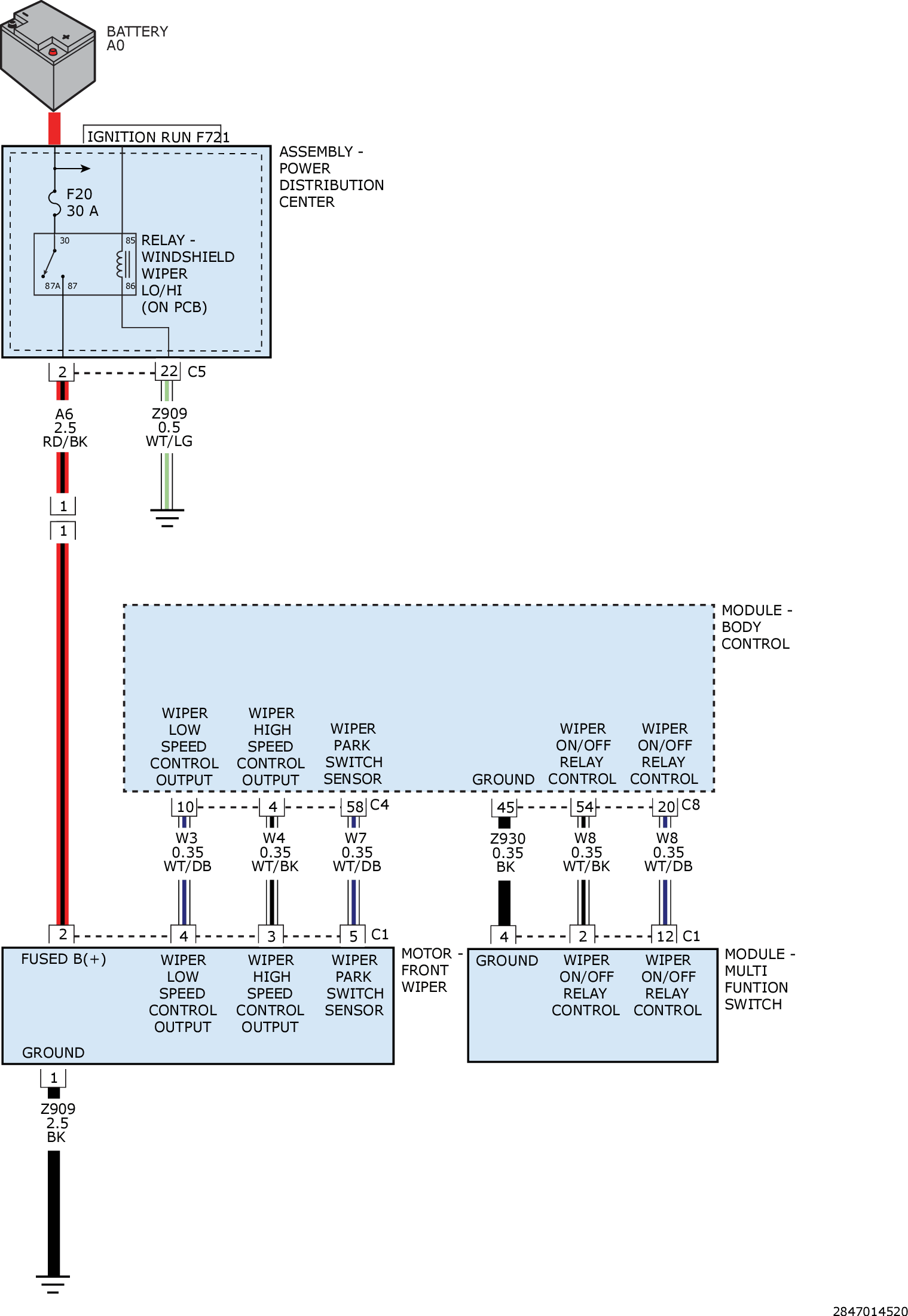

Fig 1: Wiper System Circuit Diagram
GC0161475Courtesy of CHRYSLER GROUP, LLC
