B12CC-11-Column Switch Module Cruise On/Off/Speed Limiter On Command - Circuit Short To Ground: Notes

WARNING: This page is about a different car, the 2014 RAM ProMaster 3500, 2014 RAM ProMaster 2500, and 2014 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

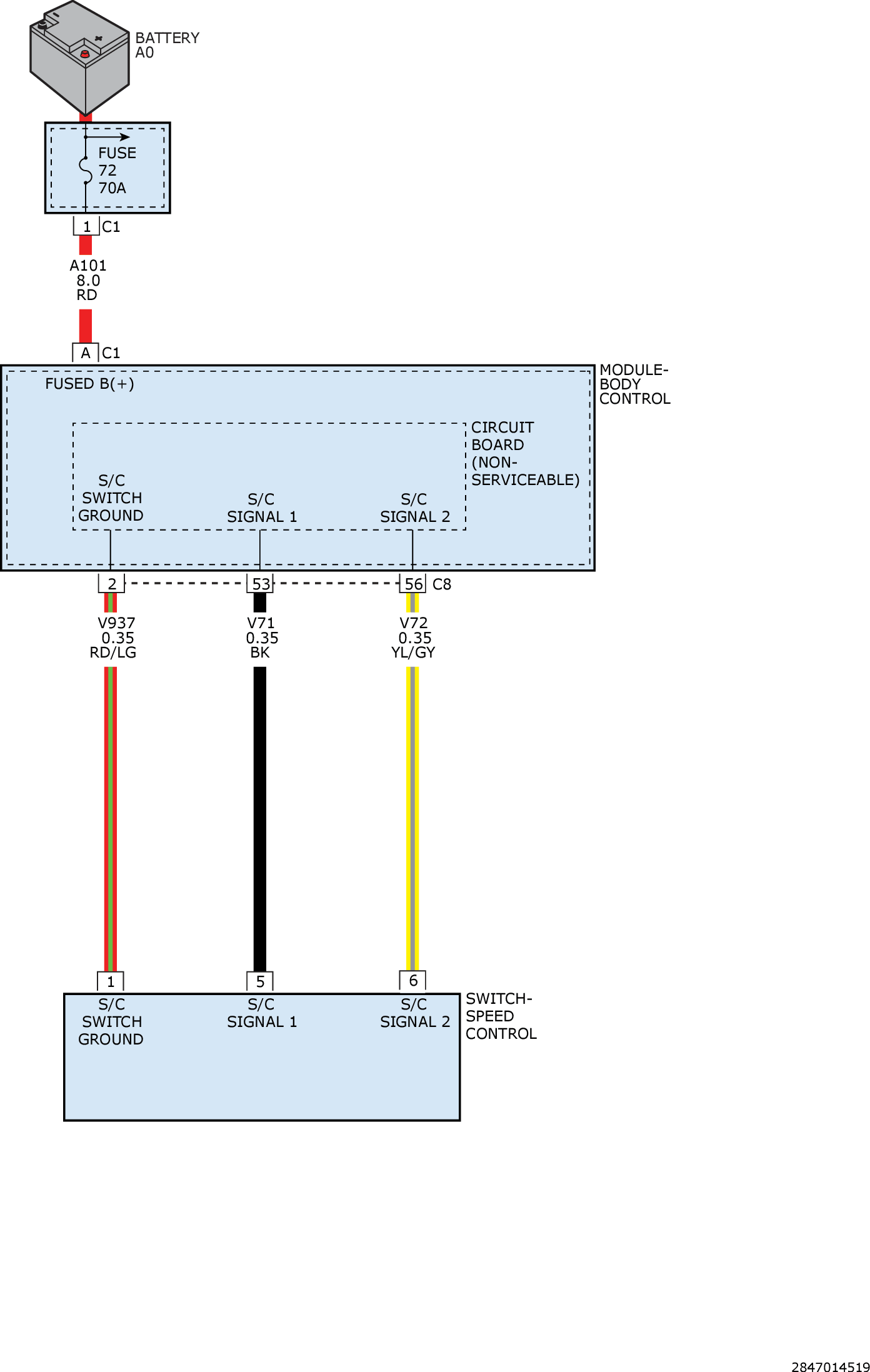

Fig 1: Speed Control Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
