B1010-18-Rear Left Turn Lamp-Under Current: Notes

WARNING: This page is about a different car, the 2014 RAM ProMaster 3500, 2014 RAM ProMaster 2500, and 2014 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

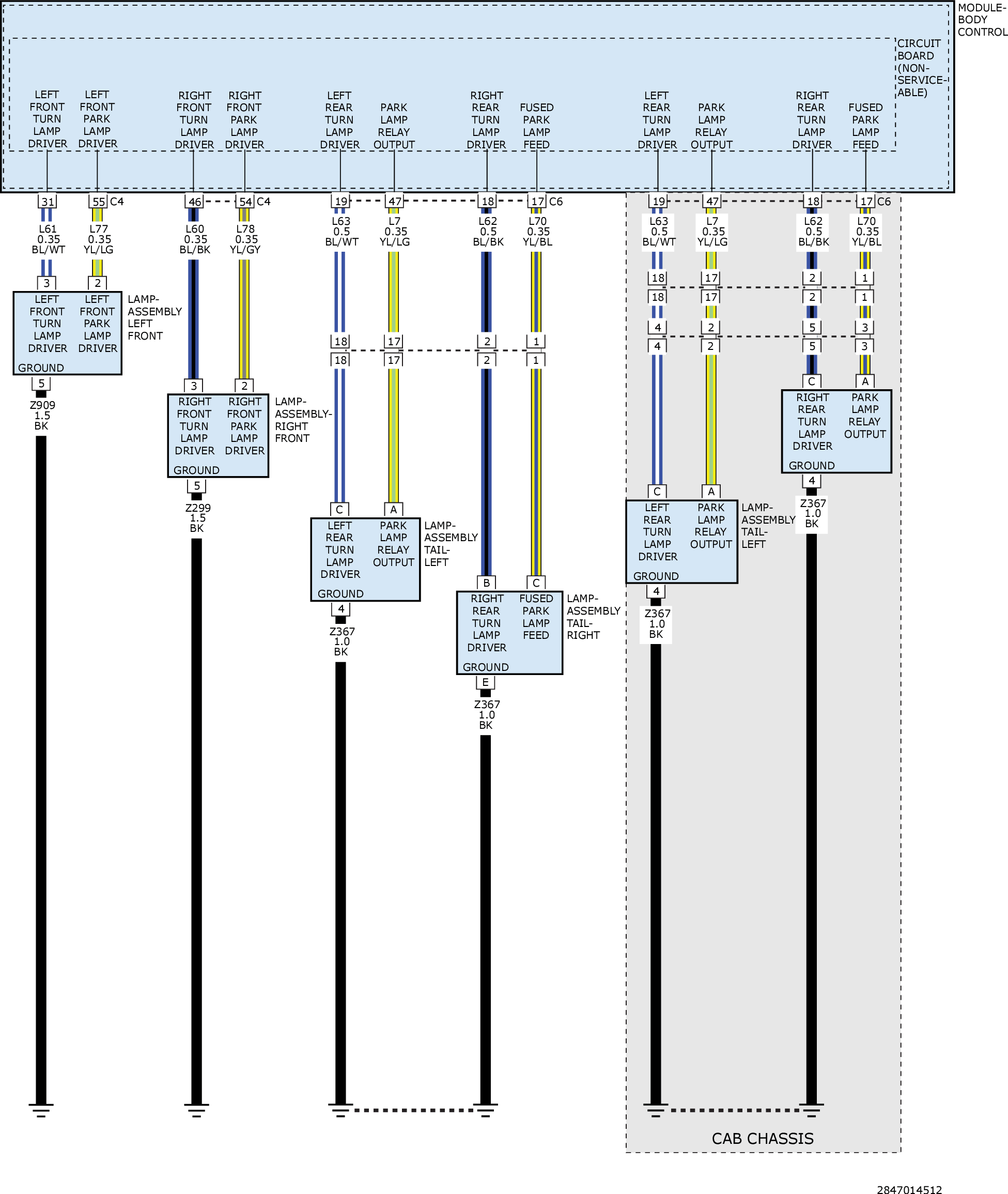

Fig 1: Turn Lamps & Park Lamps Circuit Diagram
GC0161469Courtesy of CHRYSLER GROUP, LLC
