P2101-Electronic Throttle Control Motor Performance: Notes

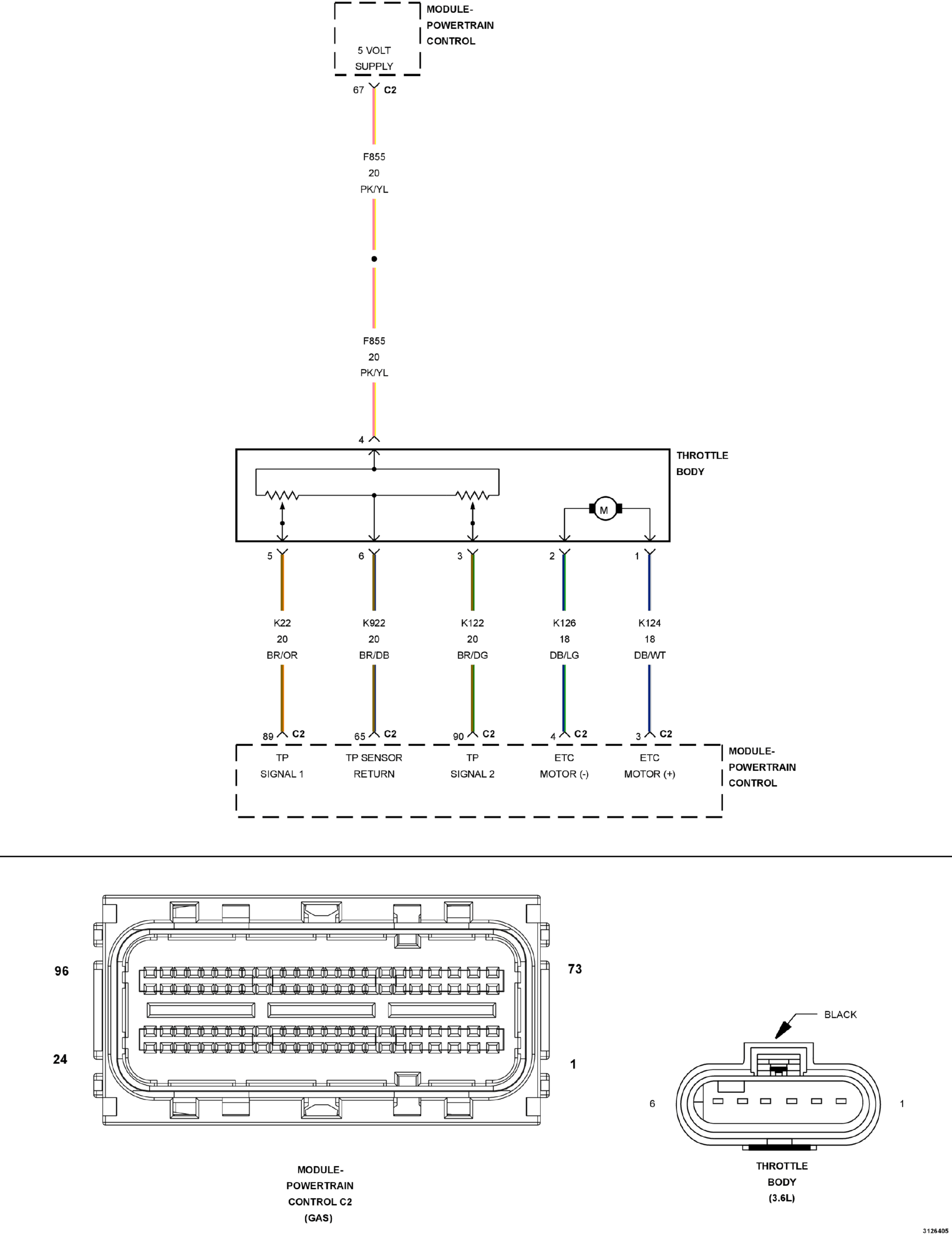

Fig 1: Throttle Body ETC Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
