P0202-Fuel Injector 2 Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

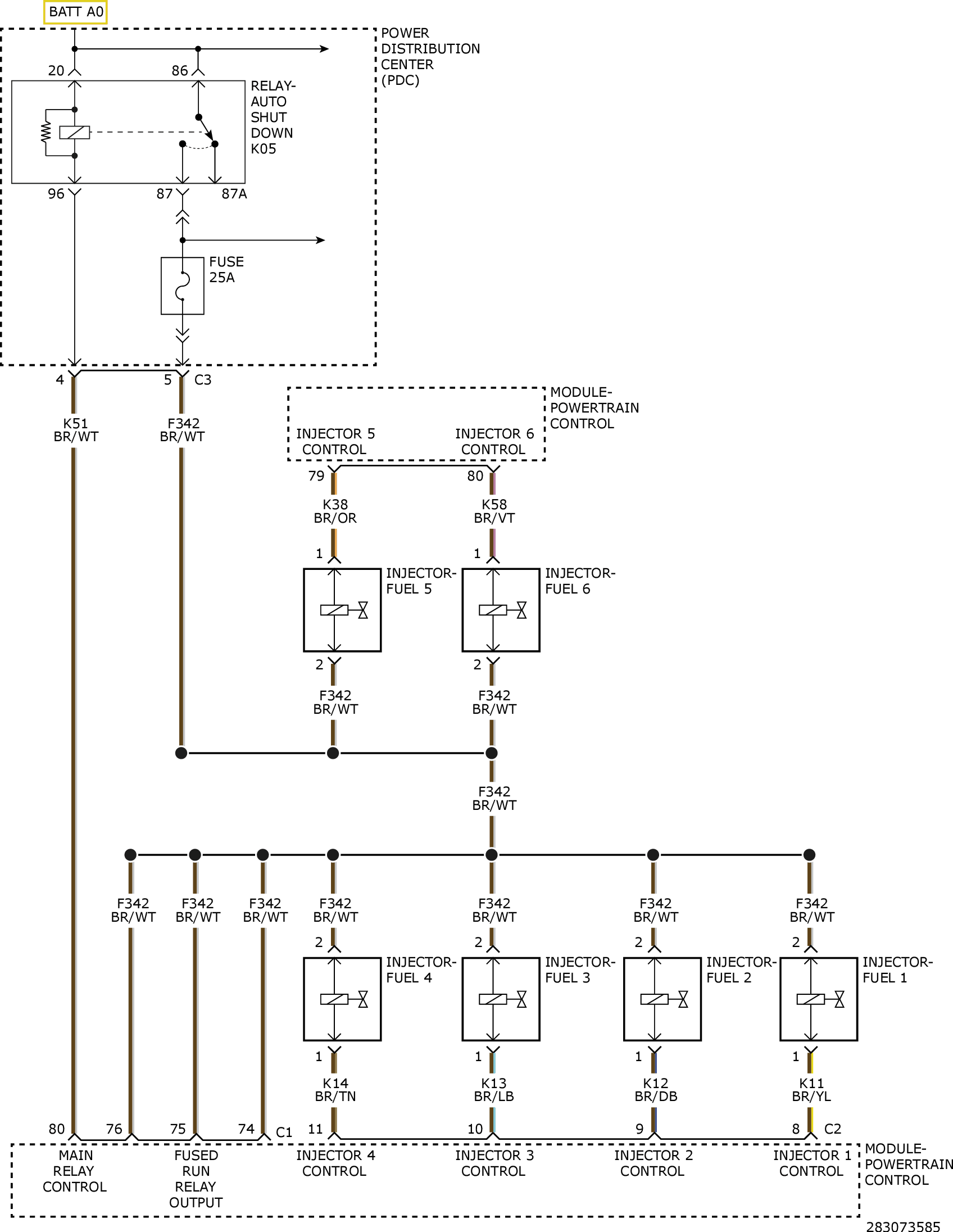

Fig 1: Fuel Injector Circuit Wiring Diagram

GC0156875

Courtesy of CHRYSLER GROUP, LLC
