Sensor, Intelligent Battery (IBS): Installation: Installation

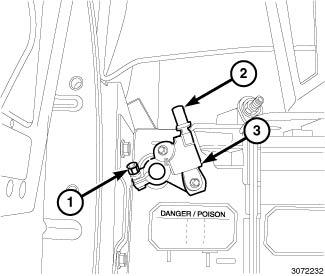

Fig 1: Captive Nut, Intelligent Battery Sensor Harness & Intelligent Battery Sensor

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Connecting the negative battery cable to the Intelligent Battery Sensor (IBS) must be done before installing on the battery post.

Place the IBS onto the negative battery post and push the IBS (3) down until properly seated on the cone of the post.
Fasten Ground terminal to M8 (max 15 Nm +/-2 Nm).
NOTE:
M8 has much higher torque than the M6 clamp and can break IBS free if the M6 is tightened prior.
Secure the M6 pole clamp (max 6 Nm +/- 1.5 Nm).
Install amp 2 pin connector (Power & LIN) making sure there is no stress on the wires.
Install the components removed to access the battery. Refer to BATTERY, AGM, INSTALLATION .
