U0264-00-Lost Communication With Camera Module - Rear: Notes

WARNING: This page is about a different car, the 2015 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

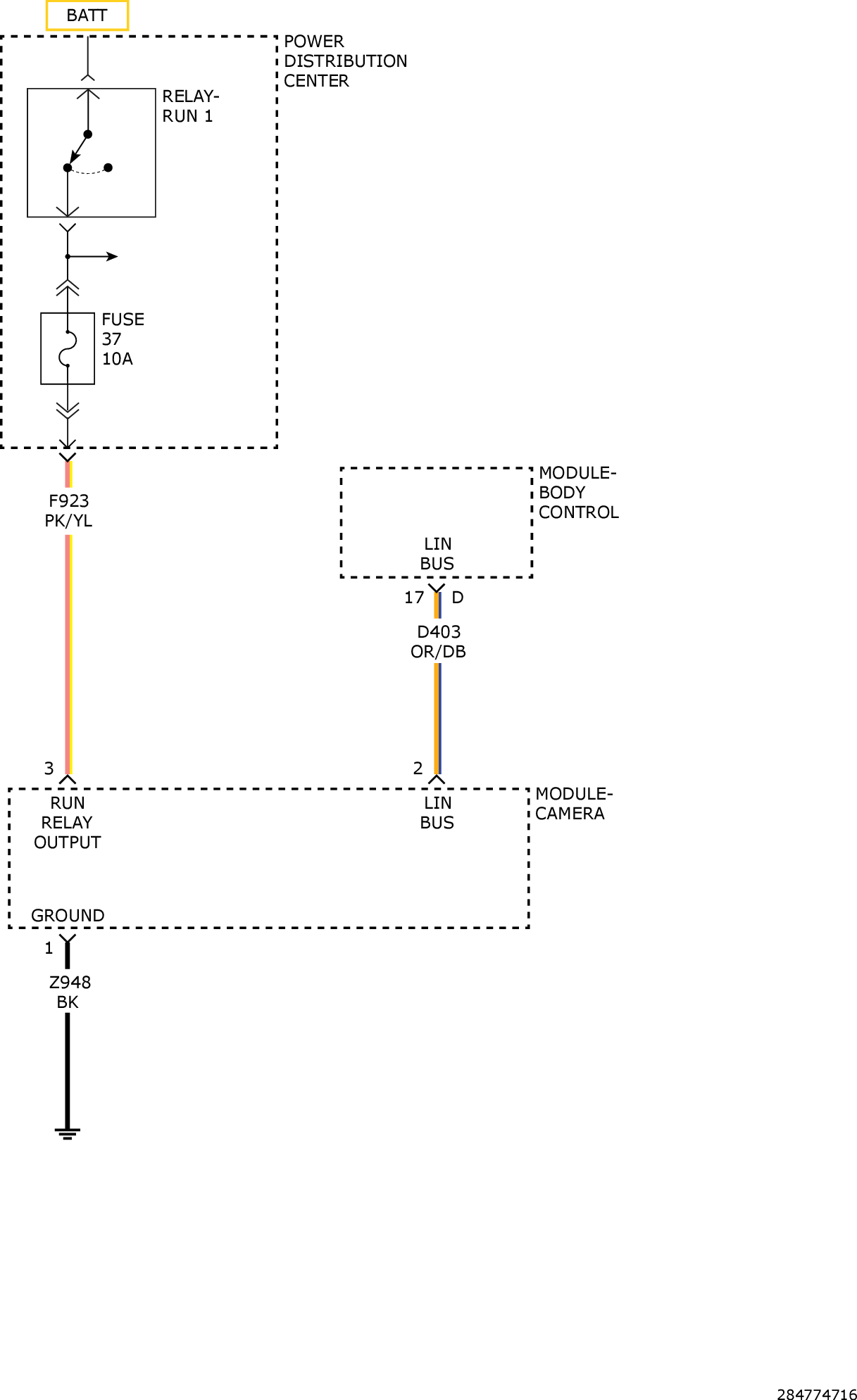

Fig 1: Camera Module Circuit Diagram
GC0157045Courtesy of CHRYSLER GROUP, LLC
