U0241-00-Lost Communication With Auto HIGHBEAM Headlamp Control Module: Notes

WARNING: This page is about a different car, the 2015 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

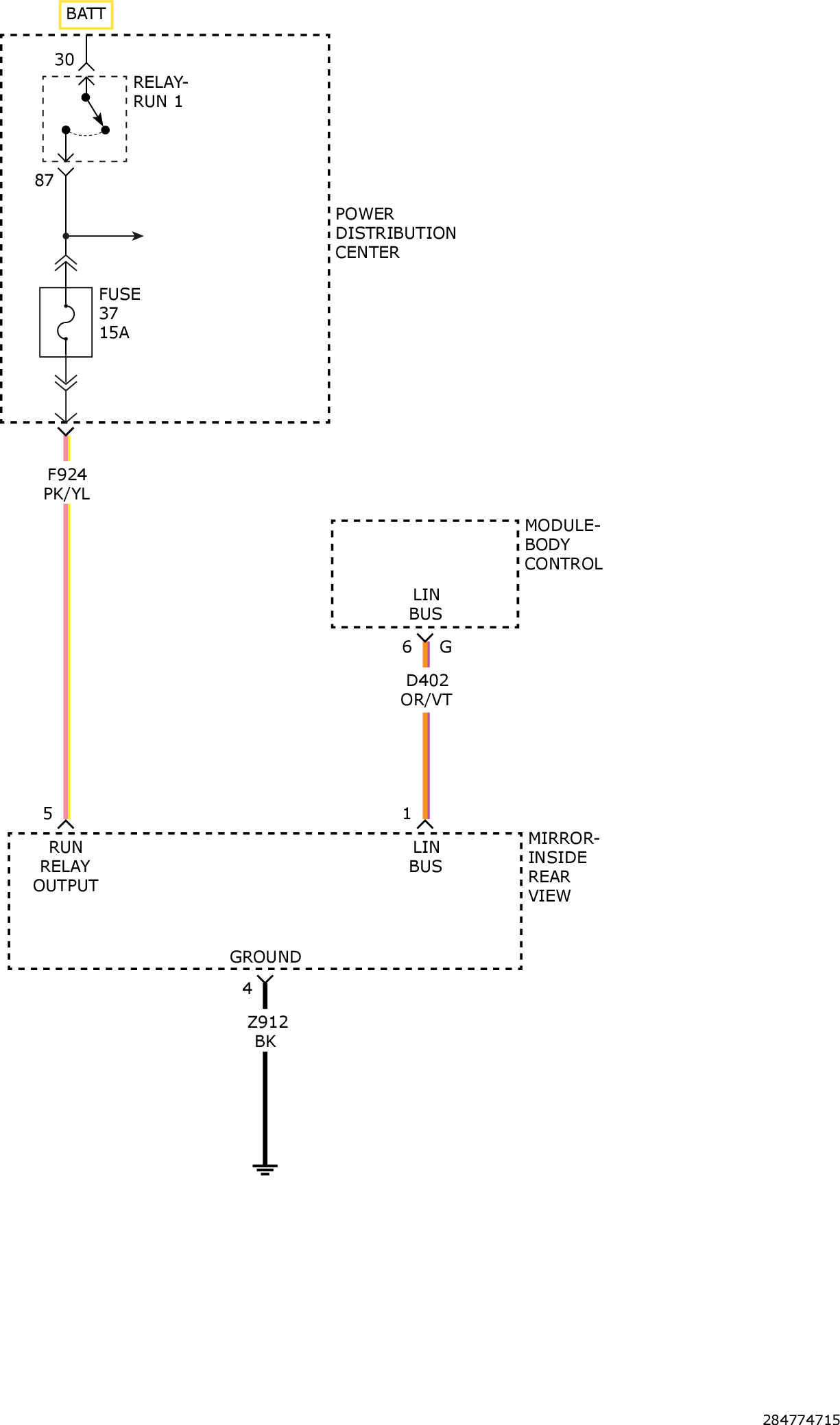

Fig 1: LIN Bus Circuit Diagram
GC0157020Courtesy of CHRYSLER GROUP, LLC
