C1006-13-Brake Fluid Level Input - Circuit Open: Notes

WARNING: This page is about a different car, the 2015 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

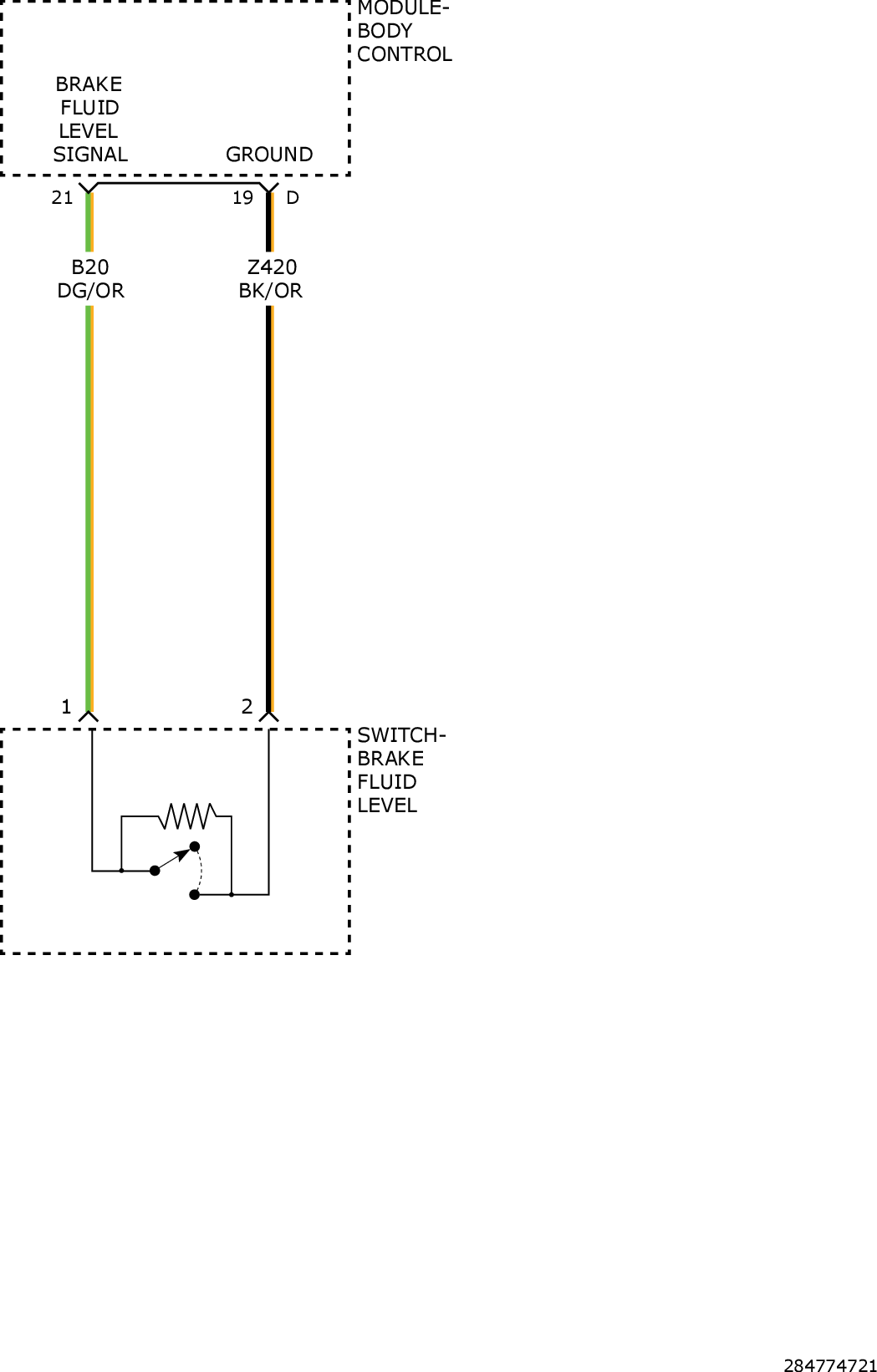

Fig 1: Brake Fluid Level Switch Wiring Diagram
GC0157064Courtesy of CHRYSLER GROUP, LLC
