B259F-13-Trunk/Liftgate Lock Control Circuit - Circuit Open: Notes

WARNING: This page is about a different car, the 2015 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

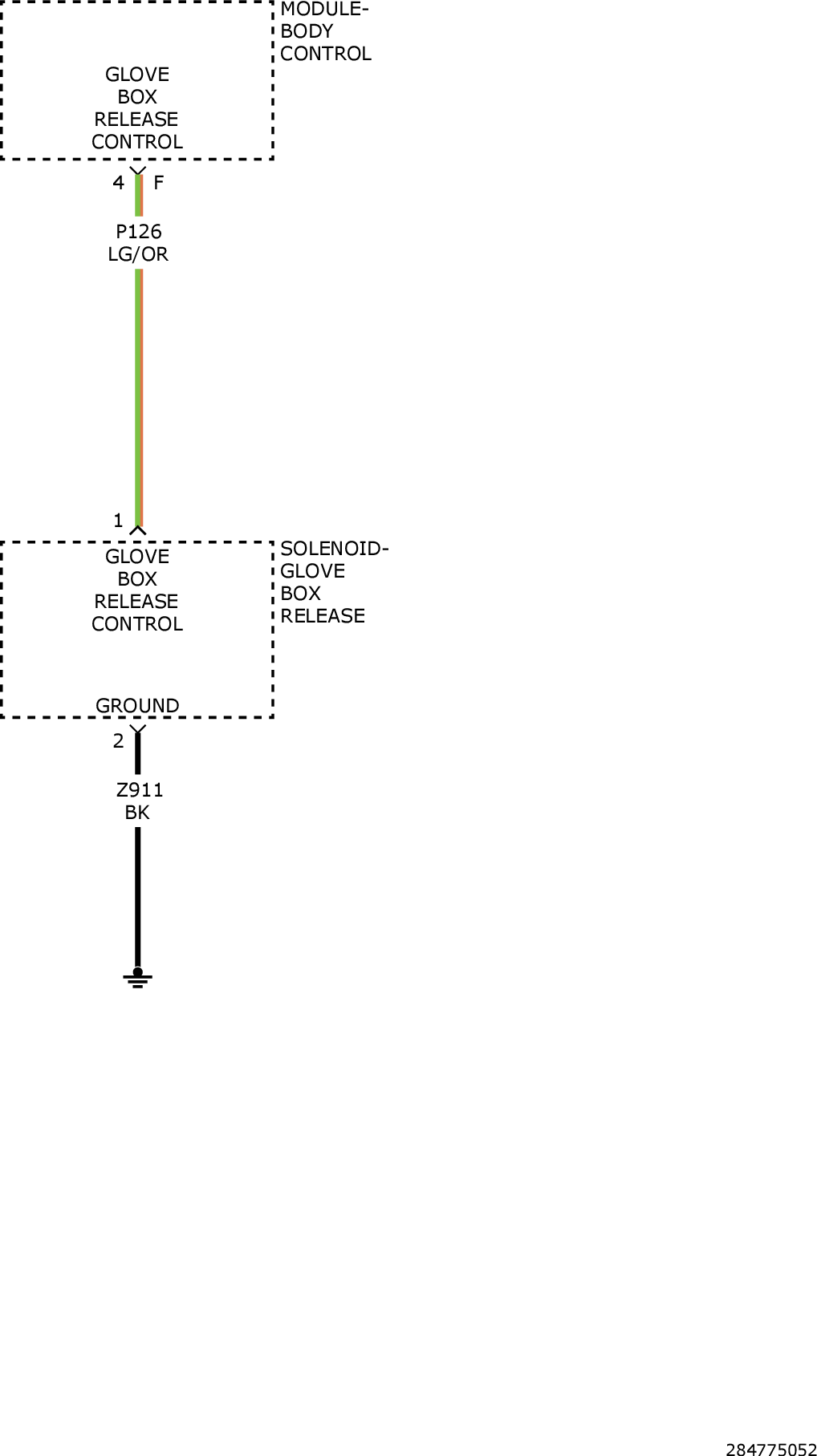

Fig 1: Glove Box Release Control Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

NOTE:

This DTC monitors the Glove Box Release Control circuit and the Glove Box Release Solenoid.
